- Part Number

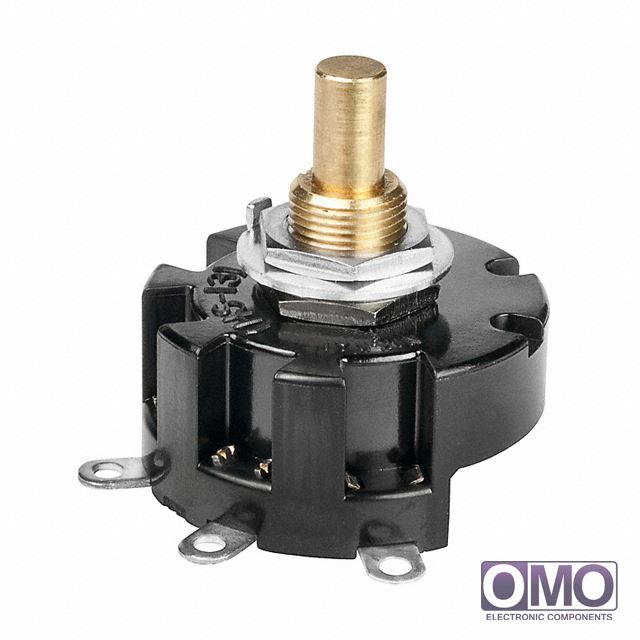

HS13X
- Manufacturer
NKK Switches
- Description
- SW ROTARY SP 6A NONSH 2POS 125V
- Category
- Switches
- Family
- Rotary Switches
- To learn about the specification of HS13X, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add HS13X with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of HS13X.
- We are offering HS13X for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HS13X
| Number of Positions | 2 | |
| Index Stops | Fixed | |
| Number of Decks | 1 | |
| Number of Poles per Deck | 1 | |
| Circuit per Deck | SPDT | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 6A (AC), 5A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Round (6mm Dia) | |
| Actuator Length | 10.00mm | |
| Angle of Throw | 45° | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | - | |
| Depth Behind Panel | 20.00mm | |
| Panel Cutout Dimensions | Circular - 10.30mm Dia | |
| Operating Force, Torque | 0.15 ~ 0.24 N-m | |
| Other Names | 360-2808 HS13X-ND HS13X-RO HS13X-RO-ND | |
| call me | [email protected] | |
