HPL1005-1N3

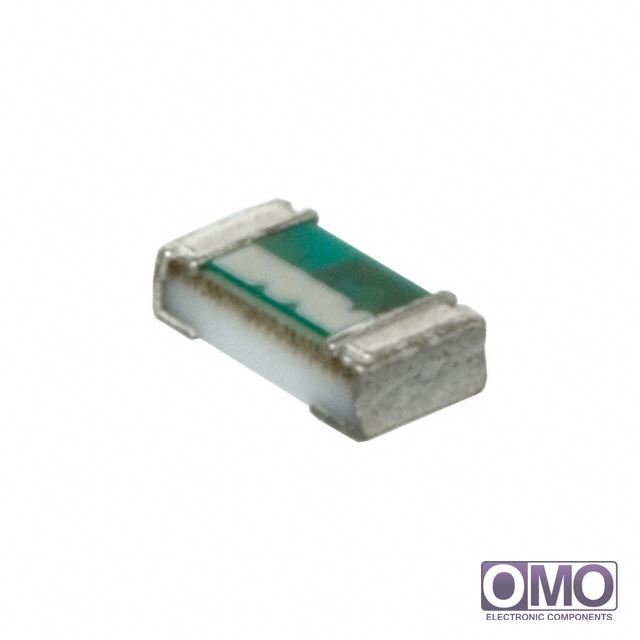

View larger image

Part Number

HPL1005-1N3

Manufacturer

Description
FIXED IND 1.3NH 1.25A 100 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HPL1005-1N3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HPL1005-1N3 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HPL1005-1N3.
  • We are offering HPL1005-1N3 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HPL1005-1N3
PackagingTape & Reel (TR)
TypeThin Film
Material - Core-
Inductance1.3nH
Tolerance±0.2nH
Current Rating1.25A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)100 mOhm Max
Q @ Freq15 @ 300MHz
Frequency - Self Resonant7GHz
Operating Temperature-
Frequency - Test300MHz
Mounting TypeSurface Mount
Package / Case0402 (1005 Metric)
Size / Dimension0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)0.013" (0.33mm)
Supplier Device Package0402 (1005 Metric)
Other Names408-1311-2
