HDS001R

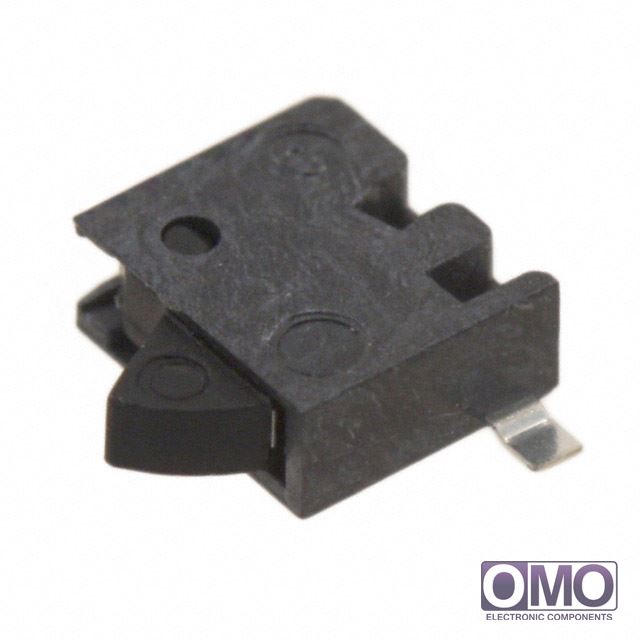

View larger image

Part Number

HDS001R

Manufacturer

Description
SWITCH DETECT TINY SPST BLCK SMD
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of HDS001R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HDS001R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HDS001R.
  • We are offering HDS001R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HDS001R
PackagingTape & Reel (TR)
CircuitSPST-NO
Switch FunctionOff-Mom
Current Rating1mA (DC)
Voltage Rating - AC-
Voltage Rating - DC5V
Actuator TypeAngled Toggle (Detector)
Mounting TypeSurface Mount, Right Angle
Termination StyleSMD (SMT) Tab
Ingress Protection-
Features-
Operating Force, Torque30gf
Release Force-
Pretravel0.007" (0.17mm)
Differential Travel-
Overtravel0.020" (0.5mm)
Operating Position0.059" (1.5mm)
Mechanical Life100,000 Cycles
Electrical Life100,000 Cycles
Operating Temperature-40°C ~ 80°C
Other NamesCKN9960TR
HDS001R-ND
