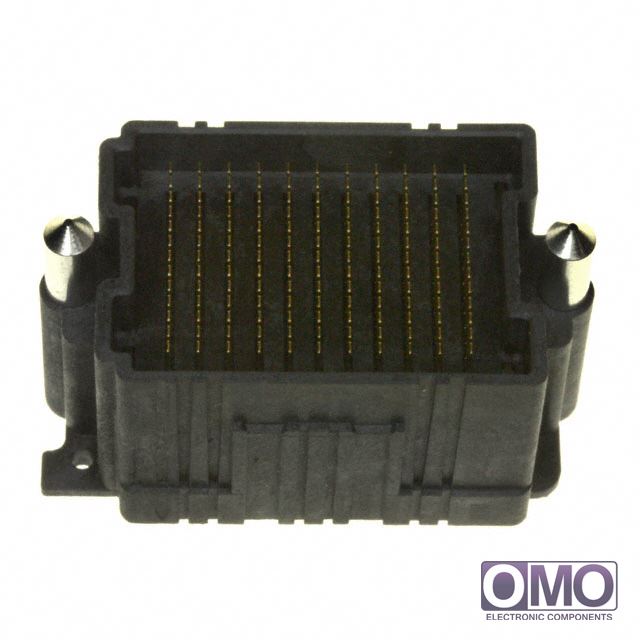

HDAM-11-17.0-S-13-1

View larger image

Part Number

HDAM-11-17.0-S-13-1

Manufacturer

Description
CONN HD ARRAY 143POS MALE GOLD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of HDAM-11-17.0-S-13-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HDAM-11-17.0-S-13-1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HDAM-11-17.0-S-13-1.
  • We are offering HDAM-11-17.0-S-13-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HDAM-11-17.0-S-13-1
PackagingTray
Connector TypeHigh Density Array, Male
Number of Positions143
Pitch0.047" (1.20mm)
Number of Rows13
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Mated Stacking Heights25mm, 35mm
Height Above Board0.880" (22.35mm)
Other NamesSAM8644
