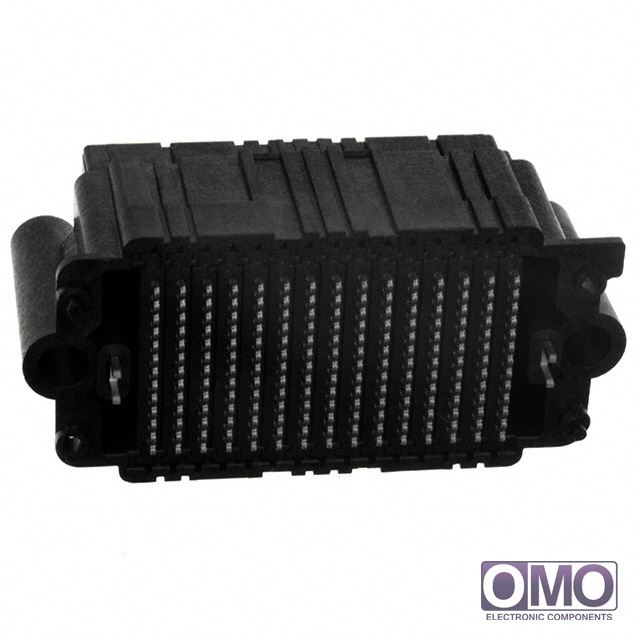

HDAF-15-18.0-S-13-1

View larger image

Part Number

HDAF-15-18.0-S-13-1

Manufacturer

Description
CONN HD ARRAY 195POS FEMALE GOLD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of HDAF-15-18.0-S-13-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HDAF-15-18.0-S-13-1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HDAF-15-18.0-S-13-1.
  • We are offering HDAF-15-18.0-S-13-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HDAF-15-18.0-S-13-1
PackagingTray
Connector TypeHigh Density Array, Female
Number of Positions195
Pitch0.047" (1.20mm)
Number of Rows13
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Mated Stacking Heights30mm, 35mm
Height Above Board0.807" (20.51mm)
Other NamesSAM8658
