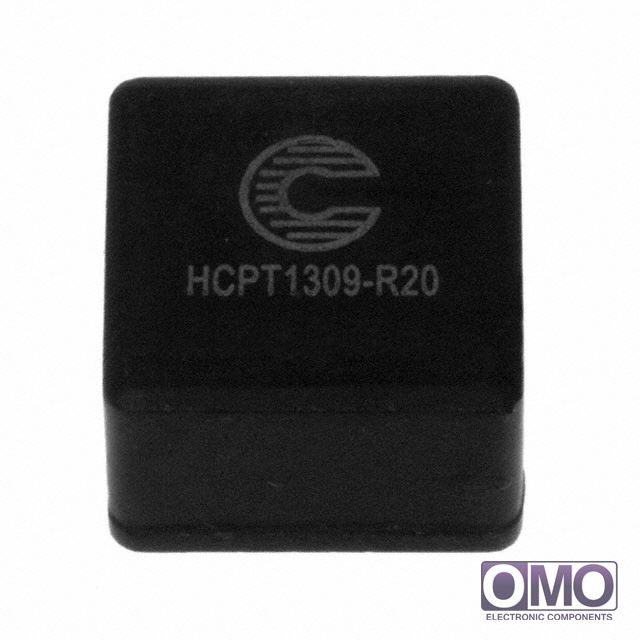

HCPT1309-R20-R

View larger image

Part Number

HCPT1309-R20-R

Manufacturer

Description
FIXED IND 200NH 43.1A 0.426 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HCPT1309-R20-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HCPT1309-R20-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HCPT1309-R20-R.
  • We are offering HCPT1309-R20-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HCPT1309-R20-R
PackagingTray
TypeWirewound
Material - CorePowdered Iron
Inductance200nH
Tolerance±20%
Current Rating43.1A
Current - Saturation90A
ShieldingUnshielded
DC Resistance (DCR)0.426 mOhm
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 105°C
Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension0.551" L x 0.480" W (14.00mm x 12.20mm)
Height - Seated (Max)0.354" (9.00mm)
Supplier Device Package-
Other Names513-1518
HCPT1309-R20-R-ND
