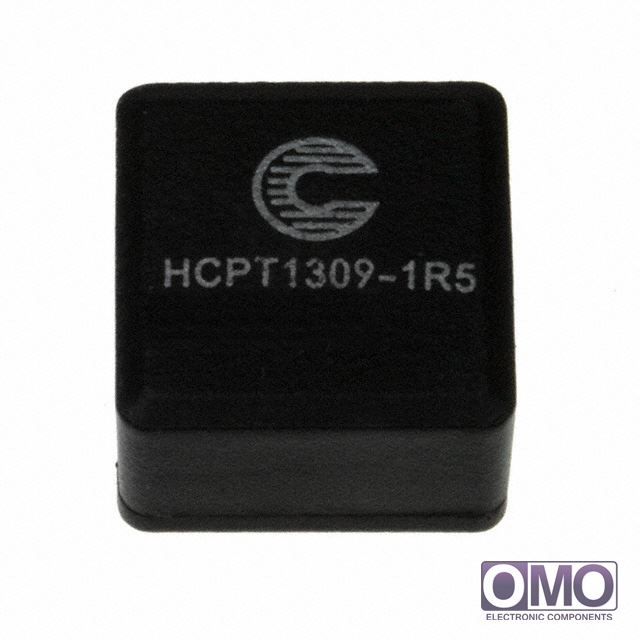

HCPT1309-1R5-R

View larger image

Part Number

HCPT1309-1R5-R

Manufacturer

Description
FIXED IND 1.59UH 13.7A 3.82 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HCPT1309-1R5-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HCPT1309-1R5-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HCPT1309-1R5-R.
  • We are offering HCPT1309-1R5-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HCPT1309-1R5-R
PackagingTray
TypeWirewound
Material - CorePowdered Iron
Inductance1.59µH
Tolerance±20%
Current Rating13.7A
Current - Saturation30.6A
ShieldingUnshielded
DC Resistance (DCR)3.82 mOhm
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 105°C
Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension0.531" L x 0.465" W (13.50mm x 11.80mm)
Height - Seated (Max)0.354" (9.00mm)
Supplier Device Package-
Other Names513-1520
HCPT1309-1R5-R-ND
