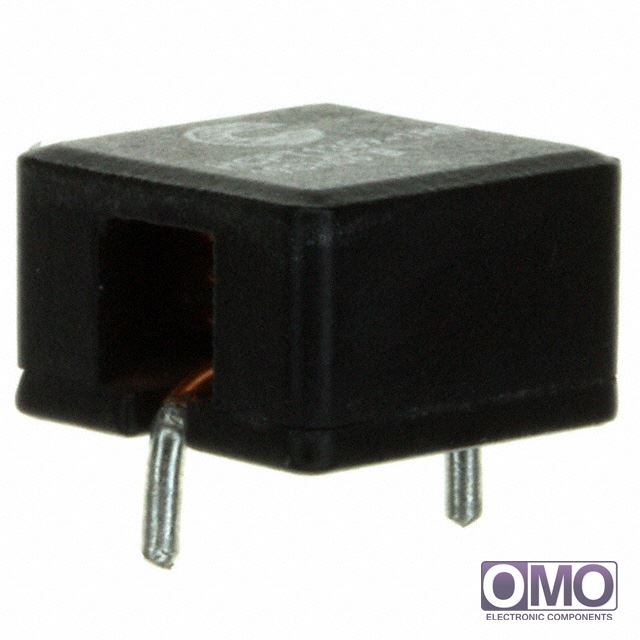

HCPT1309-1R0-R

View larger image

Part Number

HCPT1309-1R0-R

Manufacturer

Description
FIXED IND 960NH 19.4A 1.9 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HCPT1309-1R0-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HCPT1309-1R0-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HCPT1309-1R0-R.
  • We are offering HCPT1309-1R0-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HCPT1309-1R0-R
PackagingTray
TypeWirewound
Material - CorePowdered Iron
Inductance960nH
Tolerance±20%
Current Rating19.4A
Current - Saturation40A
ShieldingUnshielded
DC Resistance (DCR)1.9 mOhm
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 105°C
Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension0.539" L x 0.472" W (13.70mm x 12.00mm)
Height - Seated (Max)0.354" (9.00mm)
Supplier Device Package-
Other Names513-1519
HCPT1309-1R0-R-ND
