HCP1104-R90-R

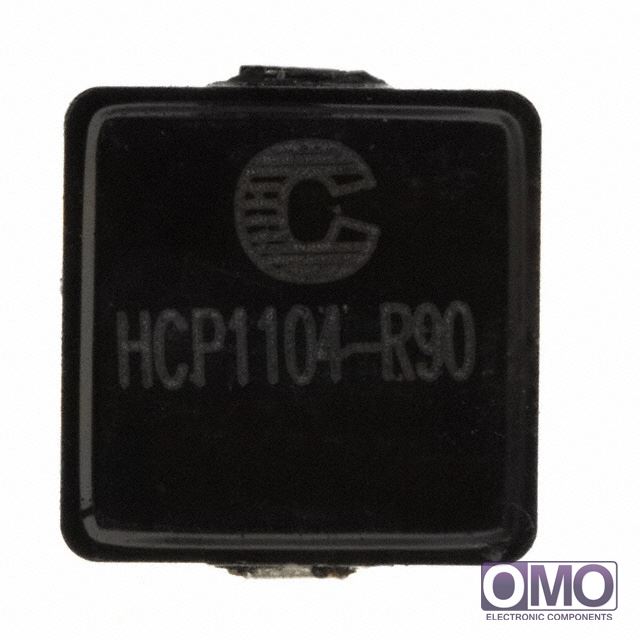

View larger image

Part Number

HCP1104-R90-R

Manufacturer

Description
FIXED IND 900NH 22A 2.5 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HCP1104-R90-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HCP1104-R90-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HCP1104-R90-R.
  • We are offering HCP1104-R90-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HCP1104-R90-R
PackagingTape & Reel (TR)
TypeWirewound
Material - CorePowdered Iron
Inductance900nH
Tolerance±20%
Current Rating22A
Current - Saturation25A
ShieldingUnshielded
DC Resistance (DCR)2.5 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-55°C ~ 125°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Max)0.157" (4.00mm)
Supplier Device Package-
Other Names513-1375-2
