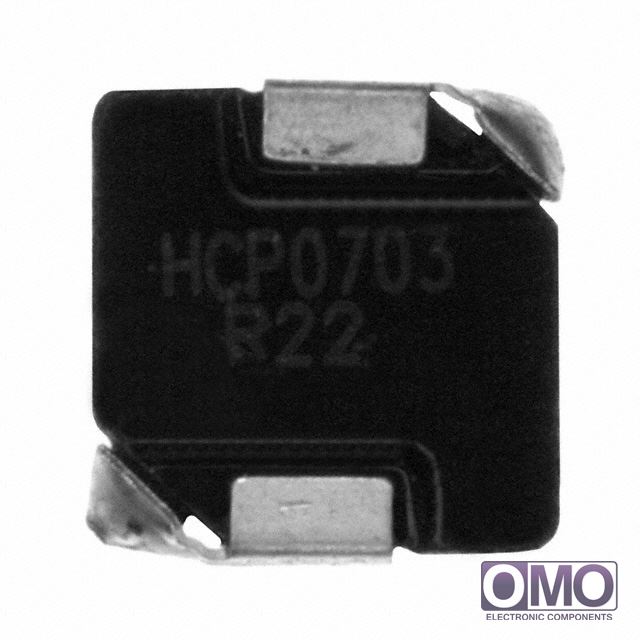

HCP0703-R22-R

View larger image

Part Number

HCP0703-R22-R

Manufacturer

Description
FIXED IND 220NH 23A 2.8 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HCP0703-R22-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HCP0703-R22-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HCP0703-R22-R.
  • We are offering HCP0703-R22-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HCP0703-R22-R
PackagingTape & Reel (TR)
TypeWirewound
Material - CorePowdered Iron
Inductance220nH
Tolerance±20%
Current Rating23A
Current - Saturation40A
ShieldingShielded
DC Resistance (DCR)2.8 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-55°C ~ 125°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.287" L x 0.275" W (7.30mm x 7.00mm)
Height - Seated (Max)0.118" (3.00mm)
Supplier Device Package-
Other Names513-1367-2
