HC9-R20-R

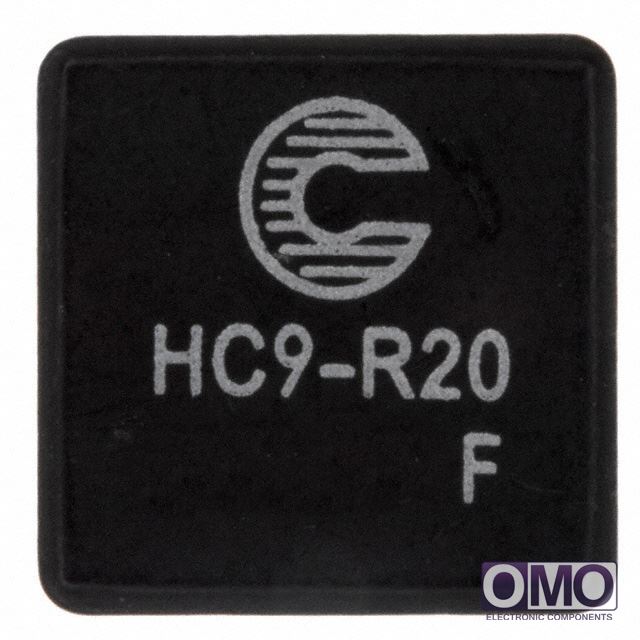

View larger image

Part Number

HC9-R20-R

Manufacturer

Description
FIXED IND 200NH 46.7A 0.5 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HC9-R20-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HC9-R20-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HC9-R20-R.
  • We are offering HC9-R20-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HC9-R20-R
PackagingTape & Reel (TR)
TypeWirewound
Material - CorePowdered Iron
Inductance200nH
Tolerance±15%
Current Rating46.7A
Current - Saturation95A
ShieldingUnshielded
DC Resistance (DCR)0.5 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 155°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.528" L x 0.516" W (13.40mm x 13.10mm)
Height - Seated (Max)0.295" (7.50mm)
Supplier Device Package-
Other Names513-1356-2
