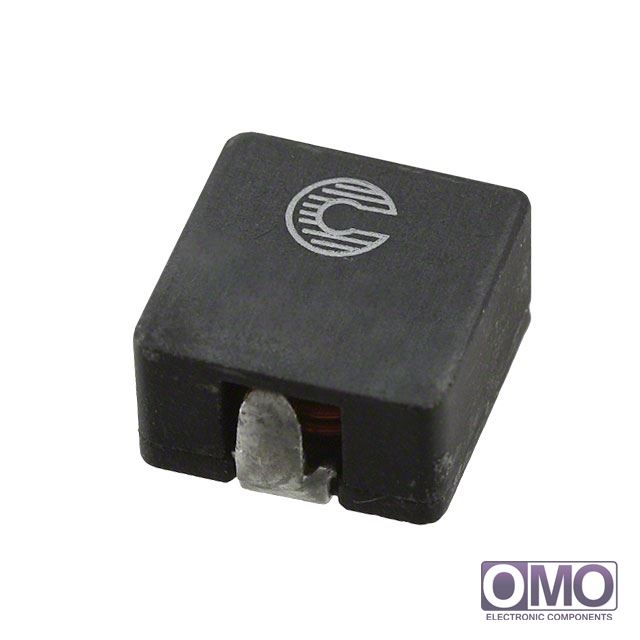

HC9-100-R

View larger image

Part Number

HC9-100-R

Manufacturer

Description
FIXED IND 10UH 8.5A 14 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HC9-100-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HC9-100-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HC9-100-R.
  • We are offering HC9-100-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HC9-100-R
PackagingTape & Reel (TR)
TypeWirewound
Material - CorePowdered Iron
Inductance10µH
Tolerance±15%
Current Rating8.5A
Current - Saturation12.5A
ShieldingUnshielded
DC Resistance (DCR)14 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 155°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.555" L x 0.515" W (14.10mm x 13.10mm)
Height - Seated (Max)0.295" (7.50mm)
Supplier Device Package-
Other Names513-1346-2
HC9100R
