HC7-2R2-R

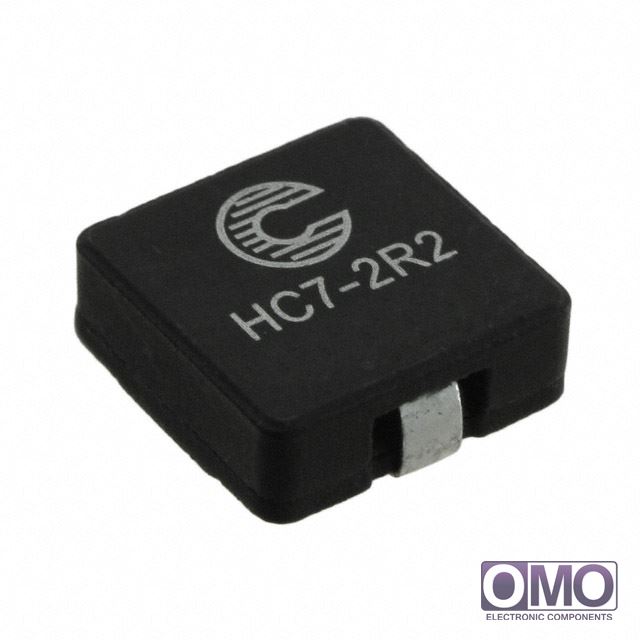

View larger image

Part Number

HC7-2R2-R

Manufacturer

Description
FIXED IND 2.2UH 13A 5.2 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HC7-2R2-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HC7-2R2-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HC7-2R2-R.
  • We are offering HC7-2R2-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HC7-2R2-R
PackagingTape & Reel (TR)
TypeWirewound
Material - CorePowdered Iron
Inductance2.2µH
Tolerance±20%
Current Rating13A
Current - Saturation23.6A
ShieldingUnshielded
DC Resistance (DCR)5.2 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 155°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.543" L x 0.511" W (13.80mm x 13.00mm)
Height - Seated (Max)0.217" (5.50mm)
Supplier Device Package-
Other Names513-1166-2
HC7-2R2
HC7-2R2-ND
HC72R2R
