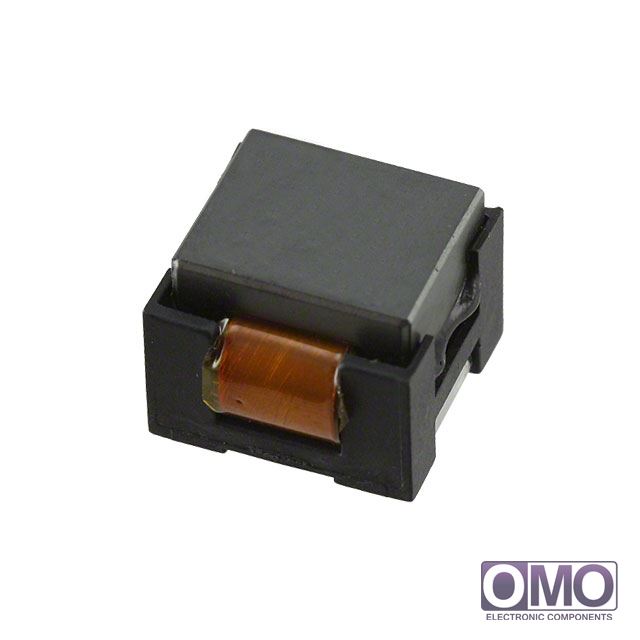

HC1-2R3-R

View larger image

Part Number

HC1-2R3-R

Manufacturer

Description
FIXED IND 2.3UH 22.3A 2 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of HC1-2R3-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HC1-2R3-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HC1-2R3-R.
  • We are offering HC1-2R3-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HC1-2R3-R
PackagingTape & Reel (TR)
TypeWirewound
Material - CoreFerrite
Inductance2.3µH
Tolerance±15%
Current Rating22.3A
Current - Saturation16.7A
ShieldingUnshielded
DC Resistance (DCR)2 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 125°C
Frequency - Test300kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max)0.394" (10.00mm)
Supplier Device Package-
Other Names513-1156-2
HC1-2R3
HC1-2R3-ND
HC12R3R
