- Part Number

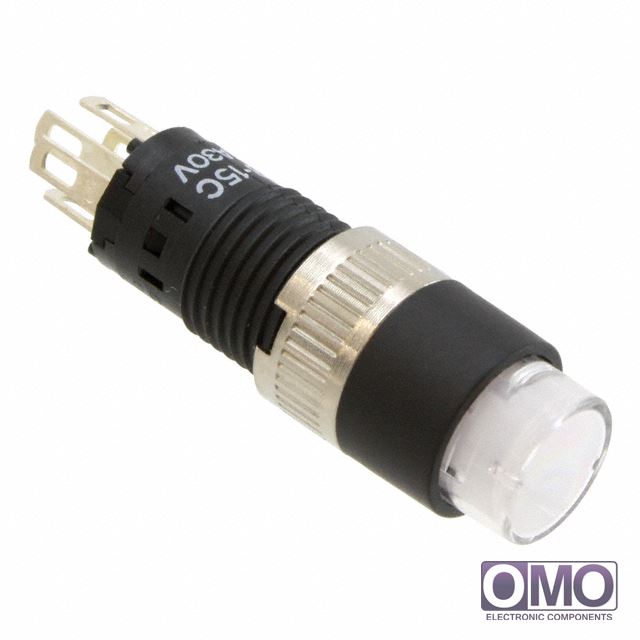

HB15CKW01-5C-JB
- Manufacturer
NKK Switches
- Description
- SWITCH PUSH SPDT 0.1A 30V
- Category
- Switches
- Family
- Pushbutton Switches
- To learn about the specification of HB15CKW01-5C-JB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add HB15CKW01-5C-JB with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of HB15CKW01-5C-JB.
- We are offering HB15CKW01-5C-JB for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HB15CKW01-5C-JB
| Packaging | Tray | |
| Type | Standard, Illuminated | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 100mA (DC) | |
| Voltage Rating - AC | 30V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Round, Button | |
| Color - Actuator/Cap | Clear (White Filter/Diffuser) | |
| Illumination Type, Color | LED, Red | |
| Illumination Voltage (Nominal) | 1.95 VDC | |
| Mounting Type | Panel Mount, Front | |
| Termination Style | Solder Lug | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | Circular - 8.00mm Dia | |
| Operating Temperature | -25°C ~ 50°C | |
| Mechanical Life | 100,000 Cycles | |
| Electrical Life | 50,000 Cycles | |
| Other Names | 360-2686 HB15CKW01-5C-JB-ND HB15CKW015CJB | |
