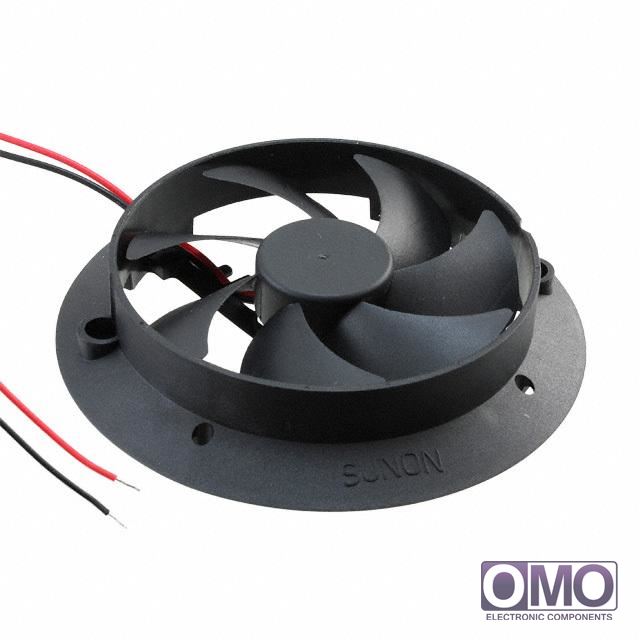

Specifications of HA60151V3-E01U-A99

Voltage - Rated	12VDC
Size / Dimension	Round - 84.9mm Dia x 15.4mm W
Air Flow	13.2 CFM (0.374m³/min)
Static Pressure	0.034 in H2O (8.5 Pa)
Bearing Type	Vapo-Bearing™
Fan Type	Tubeaxial
Features	AutoRestart
Noise	30.3 dB(A)
Power (Watts)	0.34W
RPM	2300 RPM
Termination	2 Wire Leads
Ingress Protection	-
Weight	0.06 lb (27.22g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.028A
Voltage Range	6 ~ 13.8VDC
Life Expectancy	70000 hrs @ 60°C
Material - Frame	Polybutylene Terephthalate (PBT)
Material - Blade	Polybutylene Terephthalate (PBT)
Other Names	259-1588 HA60151V3E01UA99
