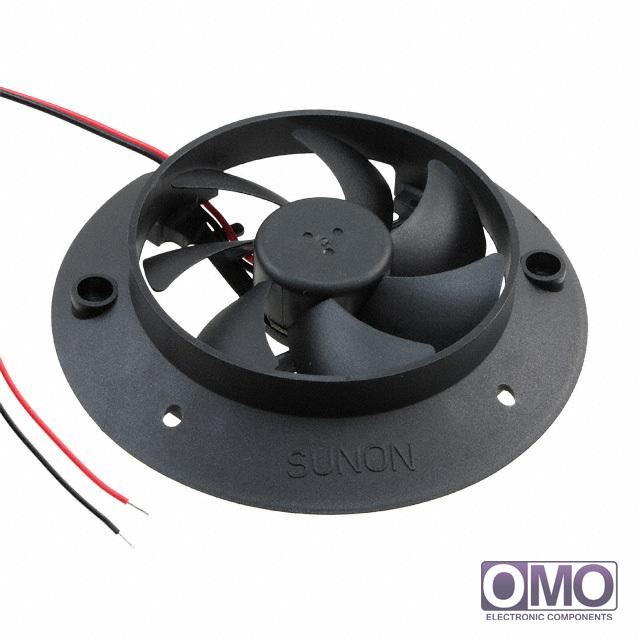

HA60151V3-E00U-A99

To learn about the specification of HA60151V3-E00U-A99, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HA60151V3-E00U-A99 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of HA60151V3-E00U-A99.
We are offering HA60151V3-E00U-A99 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of HA60151V3-E00U-A99

Voltage - Rated	12VDC
Size / Dimension	Round - 84.9mm Dia x 15.4mm W
Air Flow	9.7 CFM (0.275m³/min)
Static Pressure	0.034 in H2O (8.5 Pa)
Bearing Type	Vapo-Bearing™
Fan Type	Tubeaxial
Features	AutoRestart
Noise	27.8 dB(A)
Power (Watts)	0.28W
RPM	2300 RPM
Termination	2 Wire Leads
Ingress Protection	-
Weight	0.064 lb (29.03g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.023A
Voltage Range	6 ~ 13.8VDC
Life Expectancy	70000 hrs @ 60°C
Material - Frame	Polybutylene Terephthalate (PBT)
Material - Blade	Polybutylene Terephthalate (PBT)
Other Names	259-1587 HA60151V3E00UA99
