Part Number

HA60150V3-E02U-A99

Manufacturer

Description

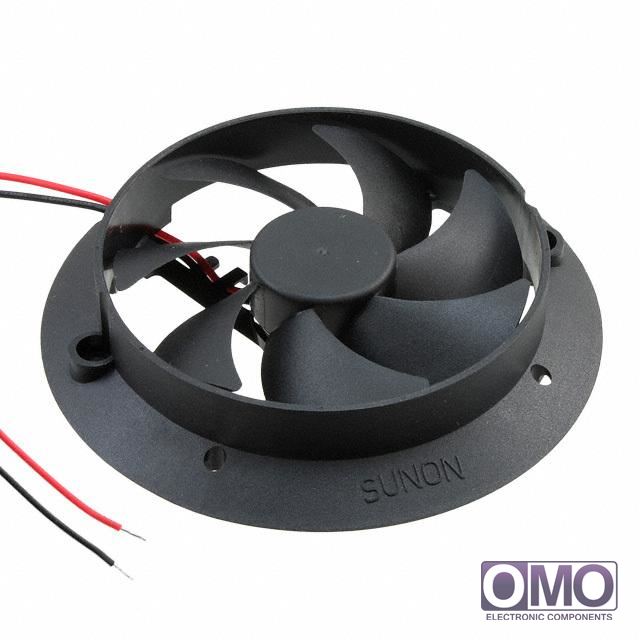

FAN 60X15MM 5VDC 13.2CFM
Category
Fans, Thermal Management
Family
DC Fans

  • To learn about the specification of HA60150V3-E02U-A99, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HA60150V3-E02U-A99 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HA60150V3-E02U-A99.
  • We are offering HA60150V3-E02U-A99 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HA60150V3-E02U-A99
Voltage - Rated5VDC
Size / DimensionRound - 84.9mm Dia x 15.4mm W
Air Flow13.2 CFM (0.374m³/min)
Static Pressure0.034 in H2O (8.5 Pa)
Bearing TypeVapo-Bearing™
Fan TypeTubeaxial
FeaturesAutoRestart
Noise16.1 dB(A)
Power (Watts)0.40W
RPM2300 RPM
Termination2 Wire Leads
Ingress Protection-
Weight0.06 lb (27.22g)
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Current Rating0.080A
Voltage Range3.5 ~ 5.5VDC
Life Expectancy70000 hrs @ 60°C
Material - FramePolybutylene Terephthalate (PBT)
Material - BladePolybutylene Terephthalate (PBT)
Other Names259-1585
HA60150V3E02UA99
