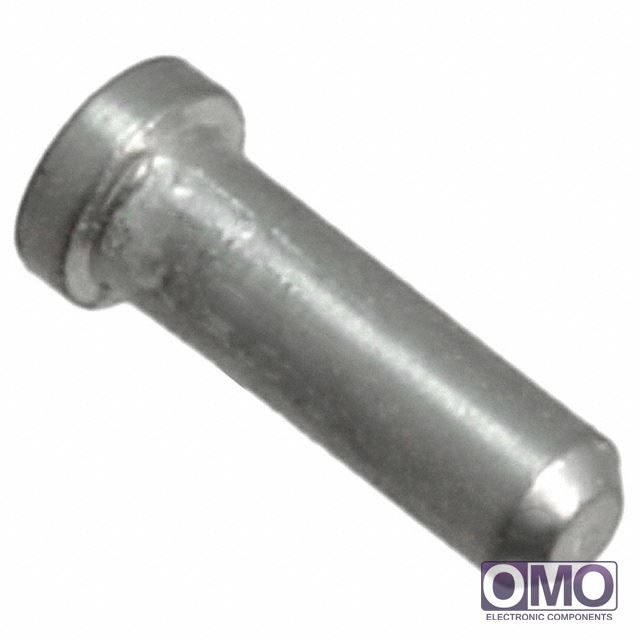

H3153-01

View larger image

Part Number

H3153-01

Manufacturer

Description
CONN SOCKET PCB FOR 0.5MM PIN
Category
Connectors, Interconnects
Family
Terminals - PC Pin Receptacles, Socket Connectors
  • To learn about the specification of H3153-01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add H3153-01 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of H3153-01.
  • We are offering H3153-01 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of H3153-01
PackagingBulk
Tail TypeNo Tail
TerminationSolder
Length - Overall0.142" (3.61mm)
Accepts Pin Diameter0.018" ~ 0.020" (0.46mm ~ 0.51mm)
Mounting Hole Diameter0.039" ~ 0.043" (0.99mm ~ 1.09mm)
Pin Hole Diameter0.043" (1.09mm)
Flange Diameter0.057" (1.45mm)
Tail Diameter-
Socket Depth0.124" (3.15mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Features-
Operating Temperature-55°C ~ 125°C
Board Thickness-
Insertion Force-
Other Names952-1457
H315301
