- Part Number

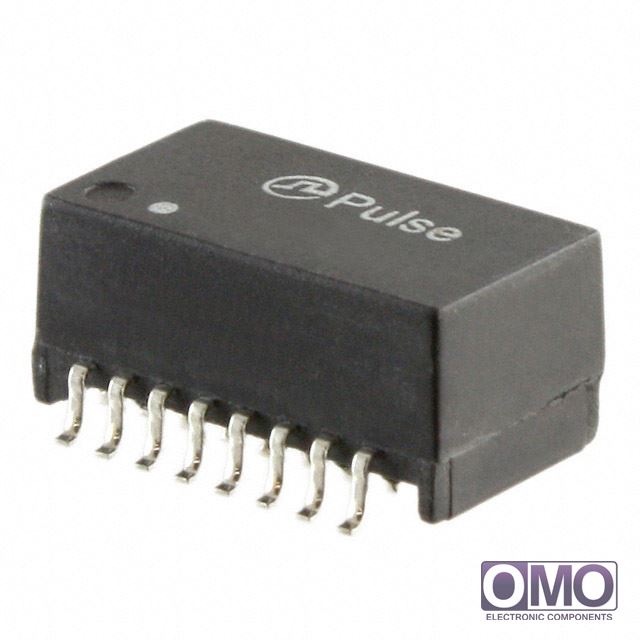

H1101NL
- Manufacturer
Pulse Electronics Corporation
- Description
- XFRMR MAGNTC 1PORT 1.25:1 10/100
- Category
- Transformers
- Family
- Pulse Transformers
- To learn about the specification of H1101NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add H1101NL with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of H1101NL.
- We are offering H1101NL for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of H1101NL
| Transformer Type | Isolation and Data Interface (Encapsulated) | |
| Inductance | - | |
| Turns Ratio - Primary:Secondary | 1.25 : 1 Transmitter, 1 : 1 Receiver | |
| E.T. | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 12.70mm L x 7.11mm W | |
| Height - Seated (Max) | 6.22mm | |
| Other Names | 553-1842-5 H1101NL-ND | |
| call me | [email protected] | |
