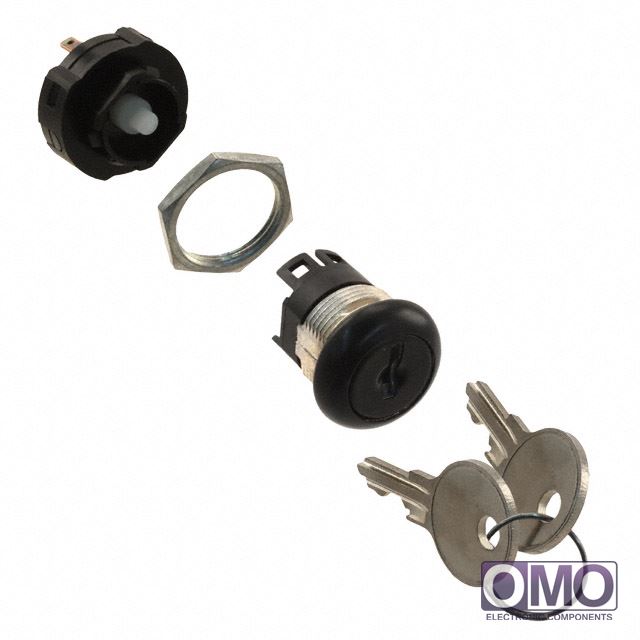

Part Number

H1011U2F205NQ

Manufacturer

Description
SWITCH KEYLOCK SPDT SP 5PC 125V
Category
Switches
Family
Keylock Switches

  • To learn about the specification of H1011U2F205NQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add H1011U2F205NQ with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of H1011U2F205NQ.
  • We are offering H1011U2F205NQ for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of H1011U2F205NQ
CircuitSPDT
Number of Positions2
Switch FunctionOn-On
Contact TimingNot Specified
Current Rating12A (AC), 1A (DC)
Voltage Rating - AC125V
Voltage Rating - DC125V
Actuator TypeFlat Key
Key Removable PositionsAll
Angle of Throw90°
Contact MaterialCopper
Contact FinishSilver
Mounting TypePanel Mount
Termination StyleQuick Connect - 0.110" (2.8mm)
Panel Cutout DimensionsCircular - 19.30mm Dia
FeaturesEpoxy Sealed Terminals
Depth Behind Flange36.61mm
Operating Temperature-30°C ~ 85°C
Mechanical Life-
Electrical Life10,000 Cycles
Other Names*H1011U2F205NQ
CKC8004
H1011U2C205NQ
