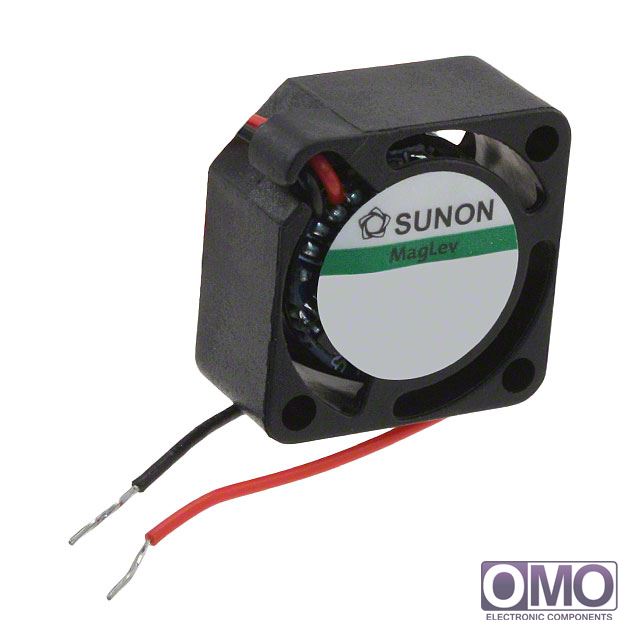

GM0517PDV2-8.GN

To learn about the specification of GM0517PDV2-8.GN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GM0517PDV2-8.GN with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of GM0517PDV2-8.GN.
We are offering GM0517PDV2-8.GN for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of GM0517PDV2-8.GN

Voltage - Rated	5VDC
Size / Dimension	Square - 17mm L x 17mm H x 8mm W
Air Flow	0.706 CFM (0.020m³/min)
Static Pressure	0.170 in H2O (42.3 Pa)
Bearing Type	Vapo-Bearing™
Fan Type	Tubeaxial
Features	-
Noise	16 dB(A)
Power (Watts)	0.60W
RPM	15000 RPM
Termination	2 Wire Leads
Ingress Protection	-
Weight	0.009 lb (4.08g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.110A
Voltage Range	3 ~ 6VDC
Life Expectancy	-
Material - Frame	Polybutylene Terephthalate (PBT)
Material - Blade	Polybutylene Terephthalate (PBT)
Other Names	259-1333 F0517P8V28--GRZ
