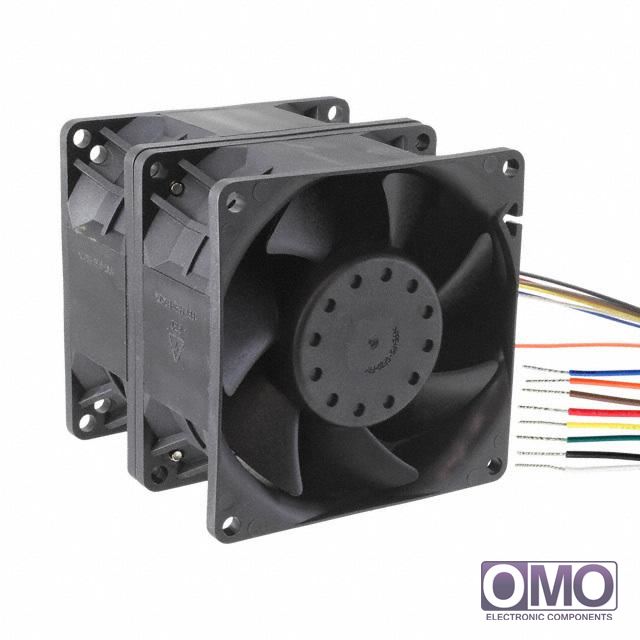

GFC0812DW-TD2G

To learn about the specification of GFC0812DW-TD2G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GFC0812DW-TD2G with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of GFC0812DW-TD2G.
We are offering GFC0812DW-TD2G for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of GFC0812DW-TD2G

Voltage - Rated	12VDC
Size / Dimension	Square - 80mm L x 80mm H x 76mm W
Air Flow	177.1 CFM (5.01m³/min)
Static Pressure	4.502 in H2O (1121.4 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial (Dual)
Features	PWM Control; Speed Sensor (Tach)
Noise	80 dB(A)
Power (Watts)	99.24W
RPM	13500 Front, 11000 Rear
Termination	4 Wire Leads per Fan
Ingress Protection	-
Weight	0.855 lb (387.82g)
Operating Temperature	14 ~ 140°F (-10 ~ 60°C)
Current Rating	8.27A
Voltage Range	10.8 ~ 12.6VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1825
