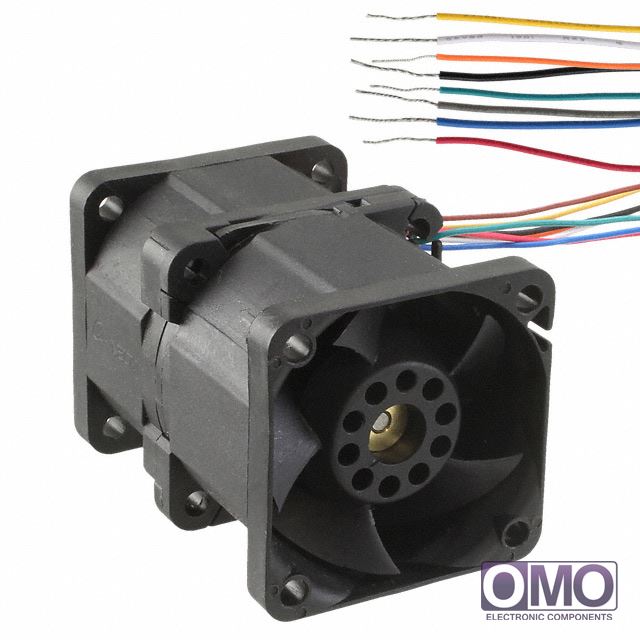

GFC0412DS-DV17

To learn about the specification of GFC0412DS-DV17, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GFC0412DS-DV17 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of GFC0412DS-DV17.
We are offering GFC0412DS-DV17 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of GFC0412DS-DV17

Voltage - Rated	12VDC
Size / Dimension	Square - 40mm L x 40mm H x 56mm W
Air Flow	33.2 CFM (0.940m³/min)
Static Pressure	3.330 in H2O (829.5 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial (Dual)
Features	Locked Rotor Sensor, PWM Control, Speed Sensor (Tach)
Noise	66 dB(A)
Power (Watts)	18W
RPM	20500 Front, 17600 Rear
Termination	4 Wire Leads per Fan
Ingress Protection	-
Weight	0.183 lb (83.01g)
Operating Temperature	14 ~ 140°F (-10 ~ 60°C)
Current Rating	1.5A
Voltage Range	10.8 ~ 12.6VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1822
