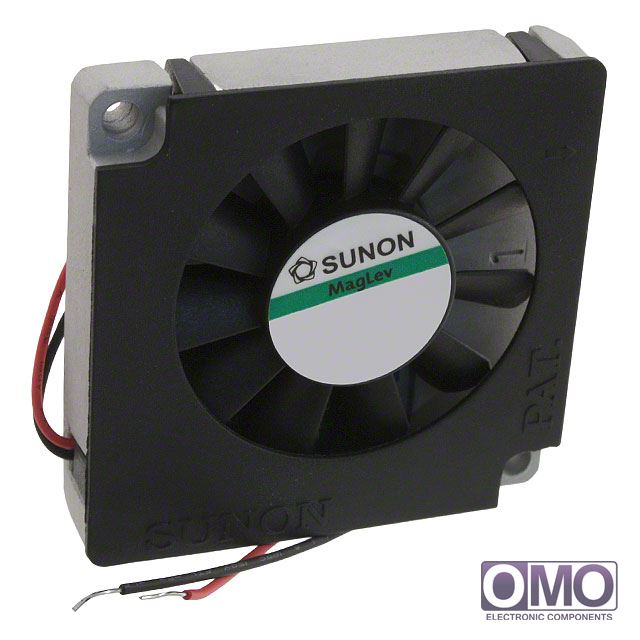

GB0545AFV1-8.B1824.GN

To learn about the specification of GB0545AFV1-8.B1824.GN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GB0545AFV1-8.B1824.GN with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of GB0545AFV1-8.B1824.GN.
We are offering GB0545AFV1-8.B1824.GN for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of GB0545AFV1-8.B1824.GN

Voltage - Rated	5VDC
Size / Dimension	Square - 45mm L x 45mm H x 9.3mm W
Air Flow	2.2 CFM (0.062m³/min)
Static Pressure	0.260 in H2O (64.8 Pa)
Bearing Type	Vapo-Bearing™
Fan Type	Blower
Features	-
Noise	29 dB(A)
Power (Watts)	0.35W
RPM	5500 RPM
Termination	2 Wire Leads
Ingress Protection	-
Weight	0.048 lb (21.77g)
Operating Temperature	14 ~ 194°F (-10 ~ 90°C)
Current Rating	0.070A
Voltage Range	3 ~ 6VDC
Life Expectancy	-
Material - Frame	Aluminum
Material - Blade	Polybutylene Terephthalate (PBT)
Other Names	259-1446 GB0545AFV18B1824GN
