- Part Number

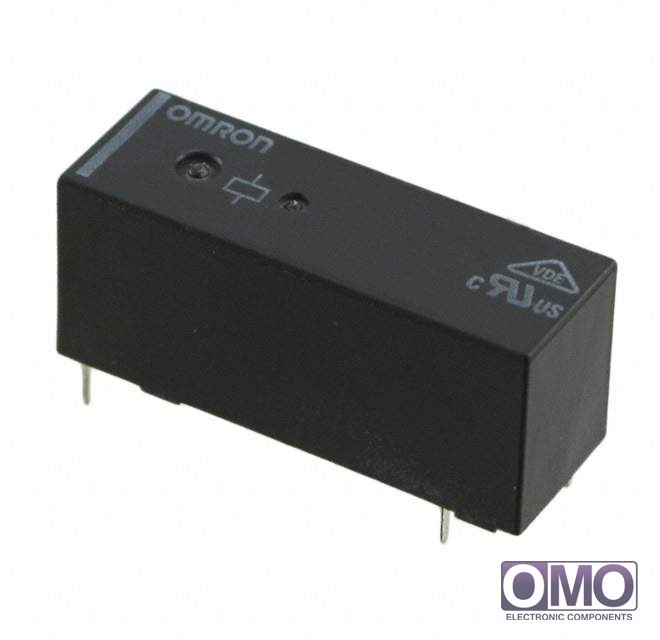

G6RL-14-ASI-DC12
- Manufacturer
Omron
- Description
- RELAY GEN PURPOSE SPDT 8A 12V
- Category
- Relays
- Family
- Power Relays, Over 2 Amps
- To learn about the specification of G6RL-14-ASI-DC12, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add G6RL-14-ASI-DC12 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of G6RL-14-ASI-DC12.
- We are offering G6RL-14-ASI-DC12 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of G6RL-14-ASI-DC12
| Packaging | Bulk | |
| Relay Type | General Purpose | |
| Coil Type | Non Latching | |
| Coil Current | 18.3mA | |
| Coil Voltage | 12VDC | |
| Contact Form | SPDT (1 Form C) | |
| Contact Rating (Current) | 8A | |
| Switching Voltage | 400VAC, 300VDC - Max | |
| Turn On Voltage (Max) | 8.4 VDC | |
| Turn Off Voltage (Min) | 1.2 VDC | |
| Operate Time | 10ms | |
| Release Time | 5ms | |
| Features | Sealed - Fully | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Contact Material | Silver Tin Indium (AgSnIn) | |
| Coil Power | 220 mW | |
| Coil Resistance | 654 Ohms | |
| Operating Temperature | -40°C ~ 85°C | |
| Other Names | G6RL14ASI12DC G6RL14ASIDC12 G6RL5047M Z2903 | |
