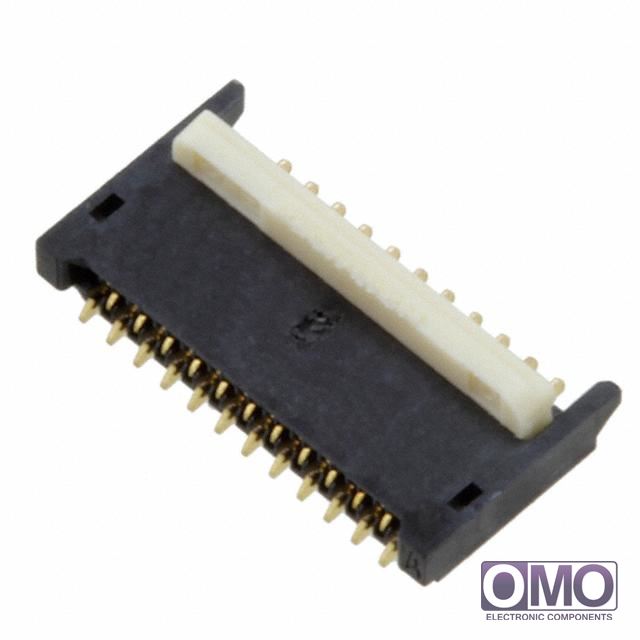

FR02C023JA1-R5000

View larger image

Part Number

FR02C023JA1-R5000

Manufacturer

Description
CONN FPC 23POS 0.20MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of FR02C023JA1-R5000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add FR02C023JA1-R5000 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of FR02C023JA1-R5000.
  • We are offering FR02C023JA1-R5000 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of FR02C023JA1-R5000
PackagingTape & Reel (TR)
Flat Flex TypeFPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top and Bottom
Number of Positions23
Pitch0.008" (0.20mm)
TerminationSolder
FFC, FCB Thickness0.20mm
Height Above Board0.032" (0.84mm)
Locking FeatureFlip Lock, Backlock
Cable End TypeTabbed or Tapered
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialPlastic
Actuator MaterialPlastic
FeaturesLow Insertion Force (LIF)
Voltage Rating50V
Operating Temperature-40°C ~ 85°C
Material Flammability Rating-
Current Rating0.25A per Contact
Other Names670-2740-2
FR02C023JA1-R5000-ND
Q8190130
