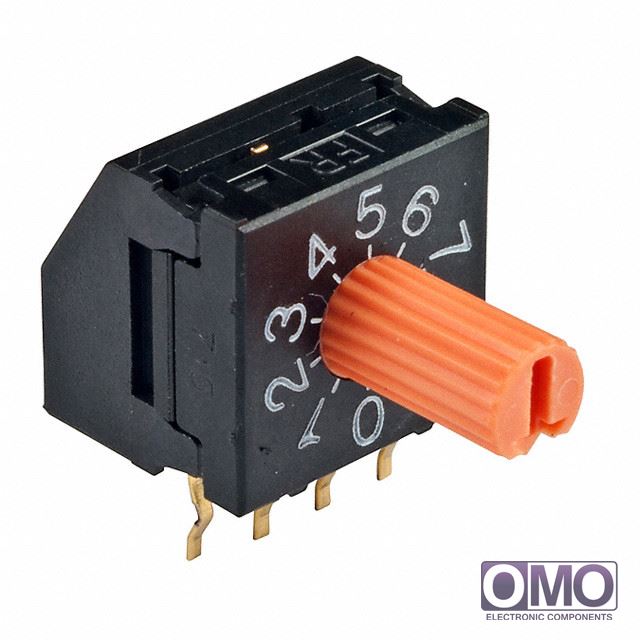

- Part Number
FR01KR10H-06XL
- Manufacturer
NKK Switches
- Description
- SWITCH ROTARY 10POS R/A .2" 5V
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of FR01KR10H-06XL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add FR01KR10H-06XL with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of FR01KR10H-06XL.
- We are offering FR01KR10H-06XL for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of FR01KR10H-06XL
| Packaging | Bulk | |
| Circuit | BCD | |
| Number of Positions | 10 | |
| Current Rating | 100mA | |
| Voltage Rating | 5VDC | |
| Actuator Type | Rotary with Shaft | |
| Actuator Level | Raised | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.394" (10.00mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | No | |
| Features | - | |
| Body Material | Polyamide (PA), Nylon, Glass Filled | |
| Length | 0.393" (10.00mm) | |
| Operating Temperature | -25°C ~ 85°C | |
| Mechanical Life | 10,000 Steps | |
| Electrical Life | 10,000 Steps | |
| Other Names | FR01KR10H06XL | |
| call me | [email protected] | |
