FOD814A3SD

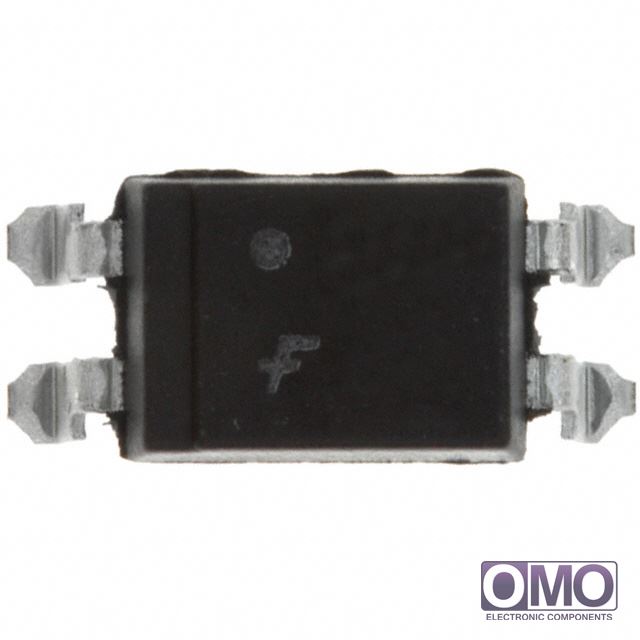

View larger image

Part Number

FOD814A3SD

Manufacturer

Description
OPTOISOLATOR 5KV TRANSISTOR 4SMD
Category
Isolators
Family
Optoisolators - Transistor, Photovoltaic Output
  • To learn about the specification of FOD814A3SD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add FOD814A3SD with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of FOD814A3SD.
  • We are offering FOD814A3SD for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of FOD814A3SD
PackagingTape & Reel (TR)
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)50% @ 1mA
Current Transfer Ratio (Max)150% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50mA
Vce Saturation (Max)200mV
Operating Temperature-55°C ~ 105°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package*
Other NamesFOD814A3SDTR
