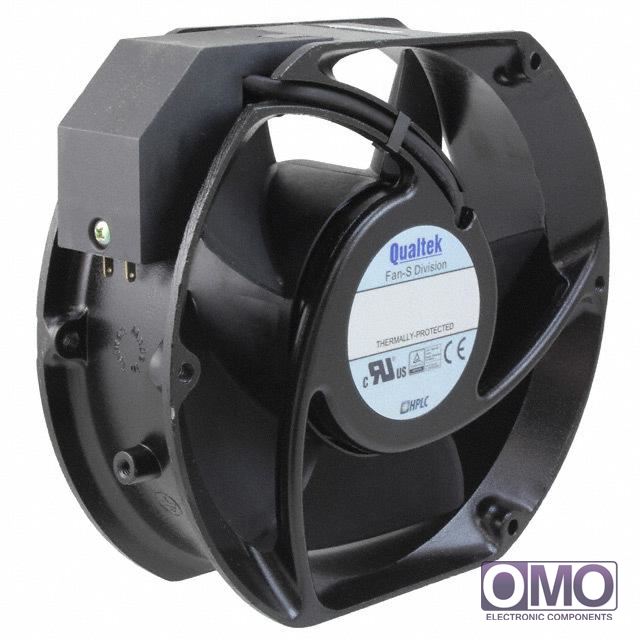

FDA2-17251NBKT3F

To learn about the specification of FDA2-17251NBKT3F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDA2-17251NBKT3F with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of FDA2-17251NBKT3F.
We are offering FDA2-17251NBKT3F for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of FDA2-17251NBKT3F

Voltage - Rated	115VAC
Size / Dimension	Rectangular/Rounded - 172mm L x 151mm H
Width	51mm
Air Flow	275.0 CFM (7.79m³/min)
Static Pressure	0.768 in H2O (191.3 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	-
Noise	60 dB(A)
Power (Watts)	27W
RPM	3300 RPM
Termination	2 Terminals
Ingress Protection	-
Operating Temperature	-4 ~ 158°F (-20 ~ 70°C)
Approvals	CE, TUV, UL
Weight	1.9 lbs (861.8g)
Current Rating	0.240A
Voltage Range	-
Material - Frame	Aluminum
Material - Blade	Plastic
Other Names	FDA2-17251NBKT3F-ND Q861
