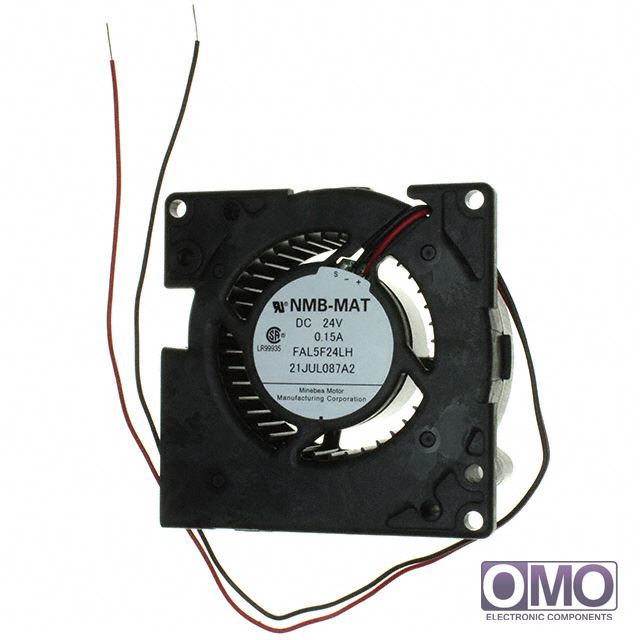

- Part Number
FAL5F24LH
- Manufacturer
NMB Technologies Corp.
- Description
- FAN BLOWER 76X28MM 24VDC WIRE
- Category
- Fans, Thermal Management
- Family
- DC Fans
- To learn about the specification of FAL5F24LH, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add FAL5F24LH with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of FAL5F24LH.
- We are offering FAL5F24LH for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of FAL5F24LH
| Voltage - Rated | 24VDC | |
| Size / Dimension | Square - 76mm L x 76mm H x 28mm W | |
| Air Flow | 10.6 CFM (0.300m³/min) | |
| Static Pressure | 0.382 in H2O (95.1 Pa) | |
| Bearing Type | Hydro-wave (HWB) | |
| Fan Type | Blower | |
| Features | - | |
| Noise | 36 dB | |
| Power (Watts) | 2.40W | |
| RPM | 2900 RPM | |
| Termination | 2 Wire Leads | |
| Ingress Protection | - | |
| Weight | 0.22 lb (99.79g) | |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) | |
| Current Rating | 0.100A | |
| Voltage Range | 14 ~ 27.6VDC | |
| Life Expectancy | 40000 hrs @ 25°C | |
| Material - Frame | - | |
| Material - Blade | - | |
| Other Names | FAL-5F24LH P9765 | |
| call me | [email protected] | |
