EMIF06-1005N12

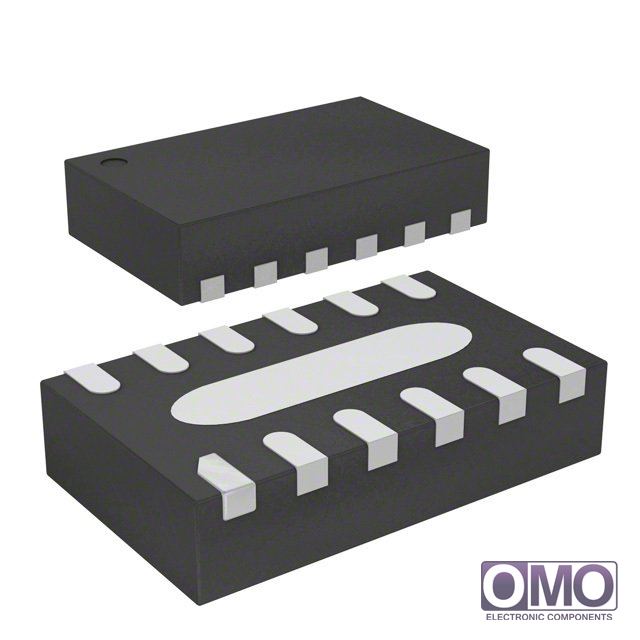

View larger image

Part Number

EMIF06-1005N12

Manufacturer

Description
IC EMI FILTER 6LINE 12-MICRO QFN
Category
Filters
Family
EMI/RFI Filters (LC, RC Networks)
  • To learn about the specification of EMIF06-1005N12, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add EMIF06-1005N12 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of EMIF06-1005N12.
  • We are offering EMIF06-1005N12 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of EMIF06-1005N12
PackagingCut Tape (CT)
TypeLow Pass
TechnologyRC (Pi)
Number of Channels6
Center / Cutoff Frequency110MHz (Cutoff)
Attenuation Value35dB @ 900MHz ~ 1.8GHz
Resistance - Channel (Ohms)100
Current10mA
ValuesR = 100 Ohms, C = 45pF (Total)
ESD ProtectionYes
Filter Order2nd
ApplicationsData Lines for Mobile Devices
Package / Case12-UFDFN Exposed Pad
Size / Dimension0.098" L x 0.047" W (2.50mm x 1.20mm)
Height0.022" (0.55mm)
Operating Temperature-40°C ~ 85°C
Other Names497-10560-1
