- Part Number

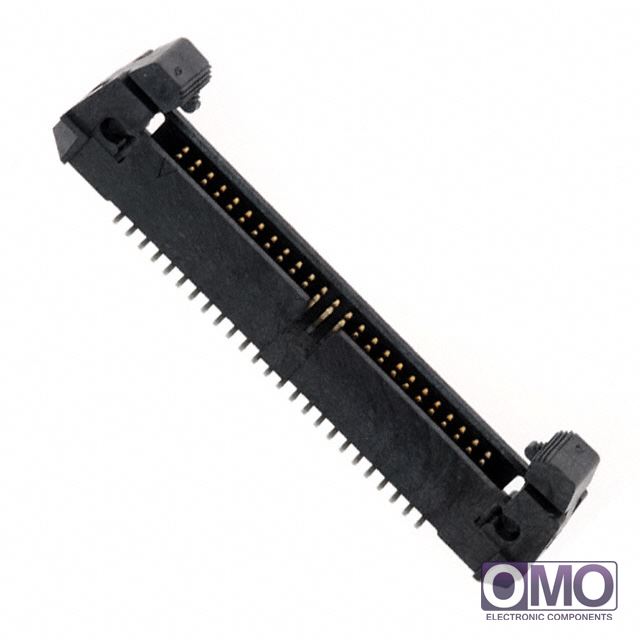

EHF-125-01-L-D-SM
- Manufacturer
Samtec, Inc.
- Description
- CONN HEADER .05" 50POS DUAL SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of EHF-125-01-L-D-SM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add EHF-125-01-L-D-SM with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of EHF-125-01-L-D-SM.
- We are offering EHF-125-01-L-D-SM for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of EHF-125-01-L-D-SM
| Packaging | Tube | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 50 | |
| Number of Positions Loaded | All | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.050" (1.27mm) | |
| Contact Mating Length | 0.120" (3.05mm) | |
| Mounting Type | Surface Mount | |
| Termination | Solder | |
| Fastening Type | Latch Lock/Eject Hooks | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Color | Black | |
| Other Names | EHF12501LDSM SAM8216 | |
| call me | [email protected] | |
