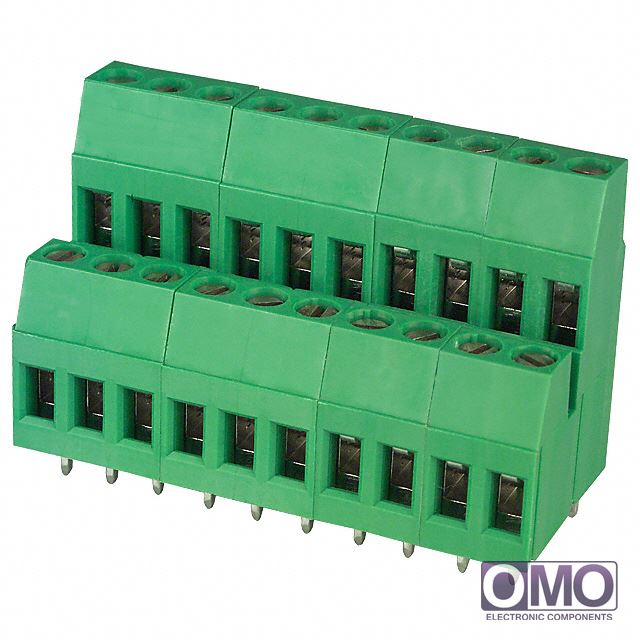

ED790/10

View larger image

Part Number

ED790/10

Manufacturer

Description
TERM BLOCK 5MM 2ROW 10POS PCB
Category
Connectors, Interconnects
Family
Terminal Blocks - Wire to Board
  • To learn about the specification of ED790/10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add ED790/10 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of ED790/10.
  • We are offering ED790/10 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ED790/10
PackagingBulk
Number of Levels2
Positions Per Level10
Pitch0.197" (5.00mm)
Mating OrientationHorizontal with Board
Current20A
Voltage300V
Wire Gauge12-30 AWG
Mounting TypeThrough Hole
Wire TerminationScrew - Rising Cage Clamp
Features-
ColorGreen
Operating Temperature-30°C ~ 105°C
Housing MaterialPolyamide (PA), Nylon
Contact Material - PlatingBrass
Clamp Material - PlatingCopper
Screw Material - Plating-
Torque - Screw0.5 Nm (4.4 Lb-In)
Screw ThreadM3
Other NamesED1586
