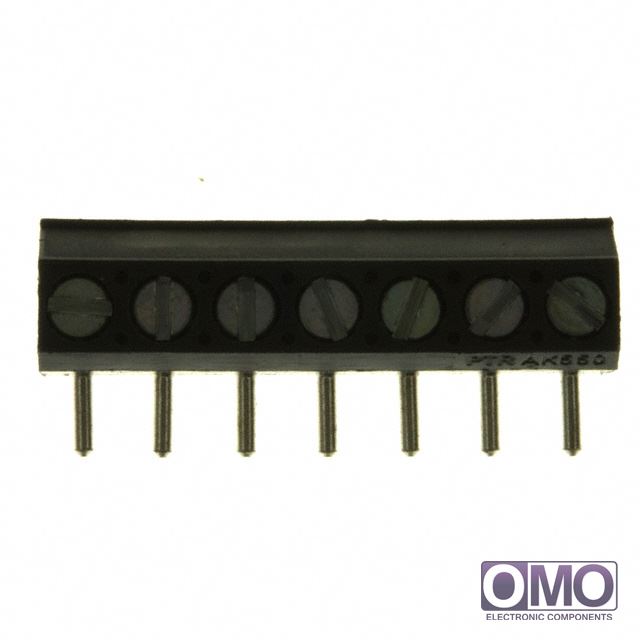

ED550/7DS

View larger image

Part Number

ED550/7DS

Manufacturer

Description
TERMINAL BLOCK 3.5MM 7POS PCB
Category
Connectors, Interconnects
Family
Terminal Blocks - Wire to Board
  • To learn about the specification of ED550/7DS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add ED550/7DS with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of ED550/7DS.
  • We are offering ED550/7DS for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ED550/7DS
PackagingBulk
Number of Levels1
Positions Per Level7
Pitch0.138" (3.50mm)
Mating OrientationVertical with Board
Current6A
Voltage125V
Wire Gauge16-28 AWG
Mounting TypeThrough Hole
Wire TerminationScrew - Leaf Spring, Wire Guard
Features-
ColorGray
Operating Temperature-30°C ~ 105°C
Housing MaterialPolyamide (PA), Nylon
Contact Material - PlatingBrass
Clamp Material - PlatingSteel, Stainless
Screw Material - Plating-
Torque - Screw0.4 Nm (3.5 Lb-In)
Screw ThreadM2
Other NamesED1506
ED550/7
ED5507DS
