ED550/6DS

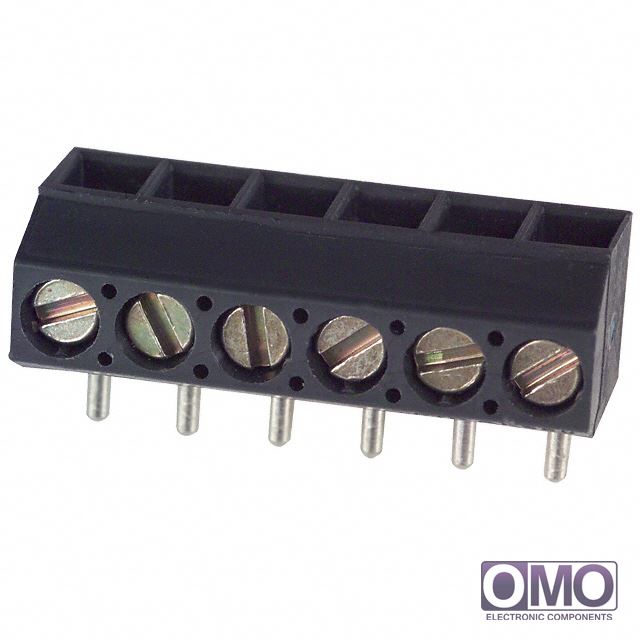

View larger image

Part Number

ED550/6DS

Manufacturer

Description
TERMINAL BLOCK 3.5MM 6POS PCB
Category
Connectors, Interconnects
Family
Terminal Blocks - Wire to Board
  • To learn about the specification of ED550/6DS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add ED550/6DS with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of ED550/6DS.
  • We are offering ED550/6DS for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ED550/6DS
PackagingBulk
Number of Levels1
Positions Per Level6
Pitch0.138" (3.50mm)
Mating OrientationVertical with Board
Current6A
Voltage125V
Wire Gauge16-28 AWG
Mounting TypeThrough Hole
Wire TerminationScrew - Leaf Spring, Wire Guard
Features-
ColorGray
Operating Temperature-30°C ~ 105°C
Housing MaterialPolyamide (PA), Nylon
Contact Material - PlatingBrass
Clamp Material - PlatingSteel, Stainless
Screw Material - Plating-
Torque - Screw0.4 Nm (3.5 Lb-In)
Screw ThreadM2
Other NamesED1505
ED550/6
ED5506DS
