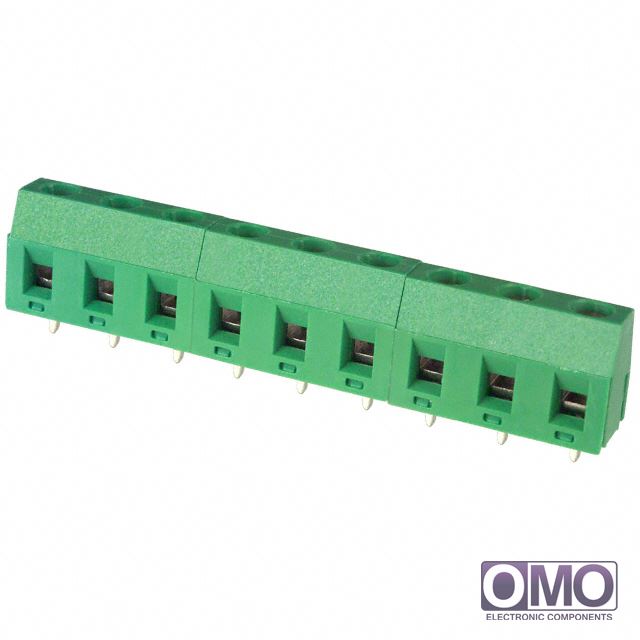

- Part Number
ED365/9
- Manufacturer
On-Shore Technology, Inc.
- Description
- TERMINAL BLOCK 7.50MM 9POS PCB
- Category
- Connectors, Interconnects
- Family
- Terminal Blocks - Wire to Board
- To learn about the specification of ED365/9, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add ED365/9 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of ED365/9.
- We are offering ED365/9 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ED365/9
| Packaging | Bulk | |
| Number of Levels | 1 | |
| Positions Per Level | 9 | |
| Pitch | 0.295" (7.50mm) | |
| Mating Orientation | Horizontal with Board | |
| Current | 16A | |
| Voltage | 300V | |
| Wire Gauge | 12-22 AWG | |
| Mounting Type | Through Hole | |
| Wire Termination | Screw - Rising Cage Clamp | |
| Features | - | |
| Color | Green | |
| Operating Temperature | -30°C ~ 105°C | |
| Housing Material | Polyamide (PA), Nylon | |
| Contact Material - Plating | Brass | |
| Clamp Material - Plating | Copper | |
| Screw Material - Plating | - | |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) | |
| Screw Thread | M3 | |
| Other Names | ED2361 | |
