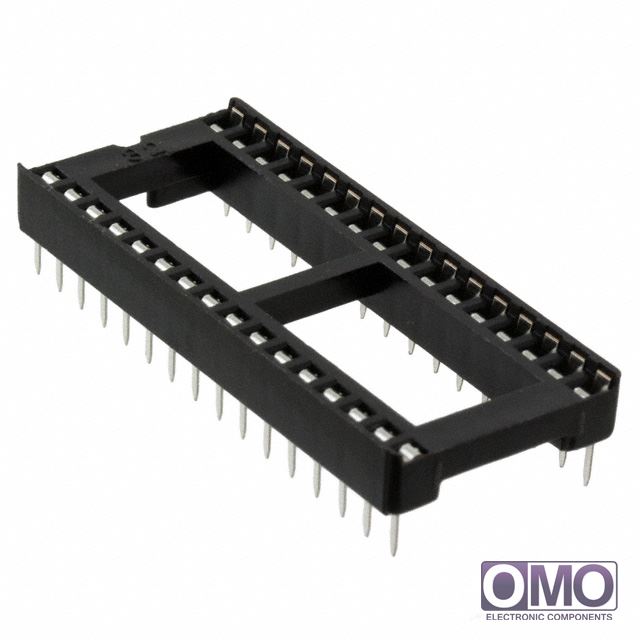

ED32DT

View larger image

Part Number

ED32DT

Manufacturer

Description
CONN IC DIP SOCKET 32POS TIN
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors
  • To learn about the specification of ED32DT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add ED32DT with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of ED32DT.
  • We are offering ED32DT for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ED32DT
PackagingTube
TypeDIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid)32 (2 x 16)
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingTin
Contact Finish Thickness - Mating60µin (1.52µm)
Contact Material - MatingPhosphor Bronze
Mounting TypeThrough Hole
FeaturesOpen Frame
TerminationSolder
Pitch - Post0.100" (2.54mm)
Contact Finish - PostTin
Contact Finish Thickness - Post60µin (1.52µm)
Contact Material - PostPhosphor Bronze
Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled
Operating Temperature-55°C ~ 110°C
Termination Post Length-
Material Flammability RatingUL94 V-0
Current Rating1A
Contact Resistance20 mOhm
Other NamesED3053-5
