ED3001/4-KD

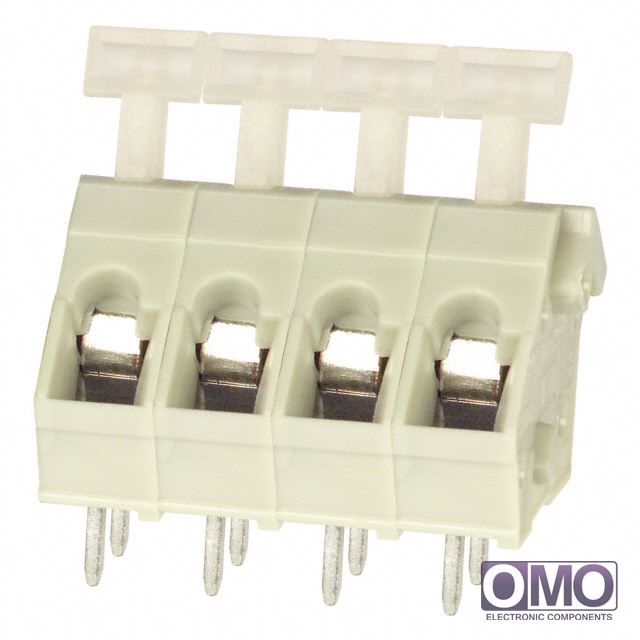

View larger image

Part Number

ED3001/4-KD

Manufacturer

Description
TERMINAL BLOCK 5MM 4POS PCB
Category
Connectors, Interconnects
Family
Terminal Blocks - Wire to Board
  • To learn about the specification of ED3001/4-KD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add ED3001/4-KD with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of ED3001/4-KD.
  • We are offering ED3001/4-KD for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ED3001/4-KD
PackagingBulk
Number of Levels1
Positions Per Level4
Pitch0.197" (5.00mm)
Mating Orientation45° (135°) Angle with Board
Current16A
Voltage300V
Wire Gauge14-28 AWG
Mounting TypeThrough Hole
Wire TerminationScrewless - Leg Spring, Push-In Spring
FeaturesInterlocking (Side), Lever Actuated
ColorGray, Slate
Operating Temperature-30°C ~ 105°C
Housing MaterialPolyamide (PA), Nylon
Contact Material - PlatingCopper
Clamp Material - Plating-
Screw Material - Plating-
Torque - Screw-
Screw Thread-
Other NamesED2261
ED30014KD
