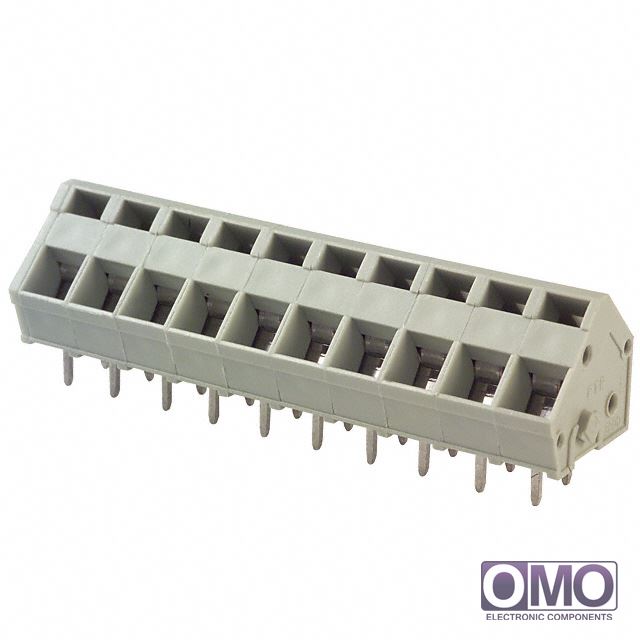

ED3000/10

View larger image

Part Number

ED3000/10

Manufacturer

Description
TERMINAL BLOCK 5MM 10POS PCB
Category
Connectors, Interconnects
Family
Terminal Blocks - Wire to Board
  • To learn about the specification of ED3000/10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add ED3000/10 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of ED3000/10.
  • We are offering ED3000/10 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ED3000/10
PackagingBulk
Number of Levels1
Positions Per Level10
Pitch0.197" (5.00mm)
Mating Orientation45° (135°) Angle with Board
Current16A
Voltage300V
Wire Gauge14-28 AWG
Mounting TypeThrough Hole
Wire TerminationScrewless - Leg Spring, Push-In Spring
FeaturesInterlocking (Side)
ColorGray, Slate
Operating Temperature-30°C ~ 105°C
Housing MaterialPolyamide (PA), Nylon
Contact Material - Plating-
Clamp Material - PlatingCopper
Screw Material - Plating-
Torque - Screw-
Screw Thread-
Other NamesED2245
ED300010
