- Part Number

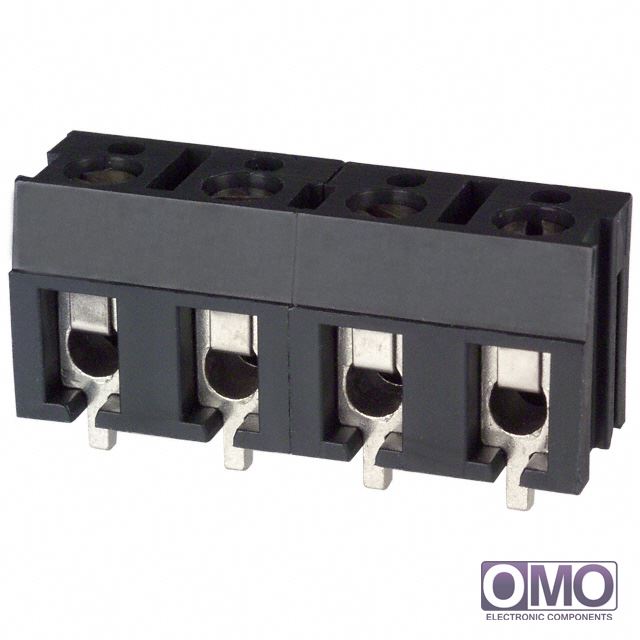

ED114/4DS
- Manufacturer
On-Shore Technology, Inc.
- Description
- TERMINAL BLOCK 7.50MM VERT 4POS
- Category
- Connectors, Interconnects
- Family
- Terminal Blocks - Wire to Board
- To learn about the specification of ED114/4DS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add ED114/4DS with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of ED114/4DS.
- We are offering ED114/4DS for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ED114/4DS
| Packaging | Bulk | |
| Number of Levels | 1 | |
| Positions Per Level | 4 | |
| Pitch | 0.295" (7.50mm) | |
| Mating Orientation | Horizontal with Board | |
| Current | 15A | |
| Voltage | 300V | |
| Wire Gauge | 12-22 AWG | |
| Mounting Type | Through Hole | |
| Wire Termination | Screw - Leaf Spring, Wire Guard | |
| Features | Interlocking (Side) | |
| Color | Gray | |
| Operating Temperature | -30°C ~ 105°C | |
| Housing Material | Polyamide (PA), Nylon | |
| Contact Material - Plating | Brass | |
| Clamp Material - Plating | Steel, Stainless | |
| Screw Material - Plating | - | |
| Torque - Screw | 0.8 Nm (7.1 Lb-In) | |
| Screw Thread | M3 | |
| Other Names | ED1144DS ED1569 | |
| call me | [email protected] | |
