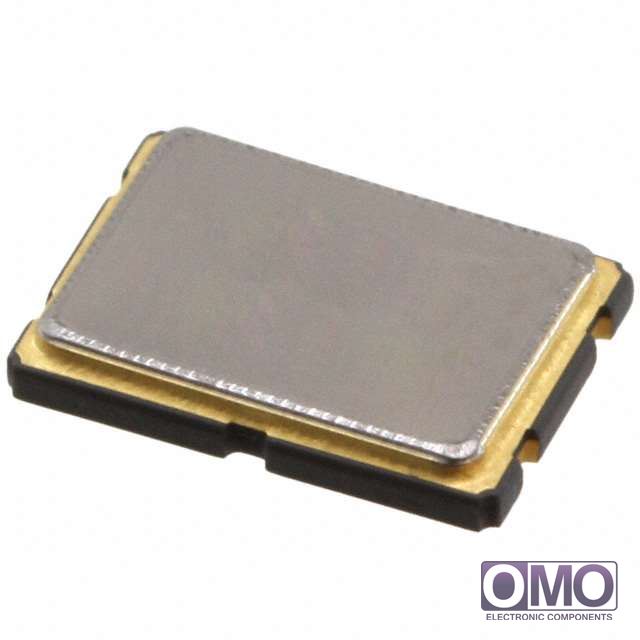

ECS-110.5-18-20BQ-DS

View larger image

Part Number

ECS-110.5-18-20BQ-DS

Manufacturer

Description
Crystal 11.0592MHz 30ppm 18pF 60 Ohm -40°C - 125°C AEC-Q200 Surface Mount 4-SMD, No Lead (DFN, LCC)
Category
Crystals and Oscillators
Family
Crystals
  • To learn about the specification of ECS-110.5-18-20BQ-DS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add ECS-110.5-18-20BQ-DS with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of ECS-110.5-18-20BQ-DS.
  • We are offering ECS-110.5-18-20BQ-DS for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ECS-110.5-18-20BQ-DS
PackagingCut Tape (CT)
TypeMHz Crystal
Frequency11.0592MHz
Frequency Stability±100ppm
Frequency Tolerance±30ppm
Load Capacitance18pF
ESR (Equivalent Series Resistance)60 Ohm
Operating ModeFundamental
Operating Temperature-40°C ~ 125°C
RatingsAEC-Q200
Mounting TypeSurface Mount
Package / Case4-SMD, No Lead (DFN, LCC)
Size / Dimension0.276" L x 0.197" W (7.00mm x 5.00mm)
Height0.051" (1.30mm)
Other NamesXC1981CT
