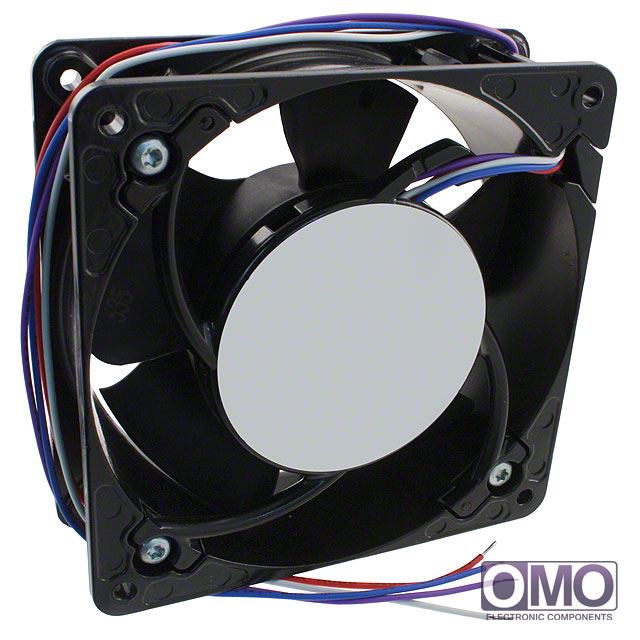

DV4112/2NP-201

To learn about the specification of DV4112/2NP-201, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DV4112/2NP-201 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of DV4112/2NP-201.
We are offering DV4112/2NP-201 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of DV4112/2NP-201

Voltage - Rated	12VDC
Size / Dimension	Square - 119mm L x 119mm H x 38mm W
Air Flow	165.0 CFM (4.67m³/min)
Static Pressure	1.586 in H2O (395.0 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	61 dB(A)
Power (Watts)	23.0W
RPM	6000 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	1 lb (453.59g)
Operating Temperature	-4 ~ 149°F (-20 ~ 65°C)
Current Rating	1.95A
Voltage Range	9 ~ 15VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Aluminum
Material - Blade	Polyamide (PA), Fiberglass Reinforced
Other Names	381-1142 DV4112/2NP-30201 DV4112/2NP30201
