Part Number

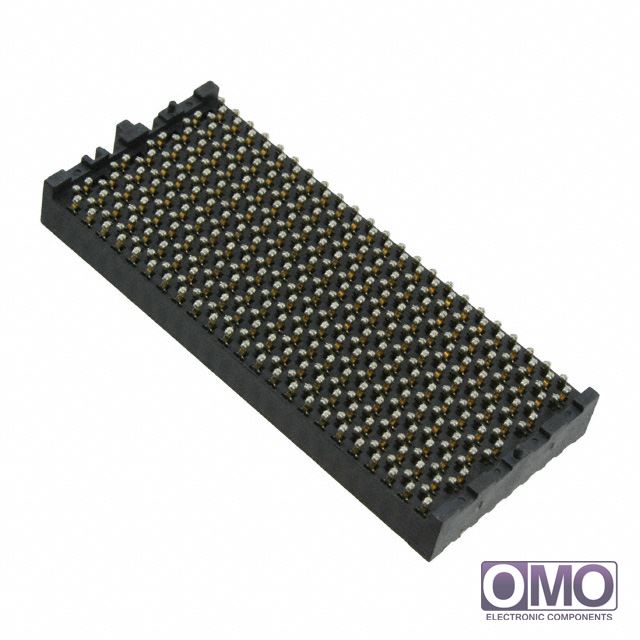

DPAF-23-03.0-H-8-2-A

Manufacturer

Description
CONN ARRAY DIFF FEMALE 8X23PAIR
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine

  • To learn about the specification of DPAF-23-03.0-H-8-2-A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add DPAF-23-03.0-H-8-2-A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of DPAF-23-03.0-H-8-2-A.
  • We are offering DPAF-23-03.0-H-8-2-A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of DPAF-23-03.0-H-8-2-A
PackagingTray
Connector TypeDifferential Pair Array, Female
Number of Positions336 signal (168 pair)
Pitch0.085" (2.16mm)
Number of Rows8
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Mated Stacking Heights10mm, 14mm, 17mm
Height Above Board0.254" (6.45mm)
Other NamesSAM8037
