- Part Number

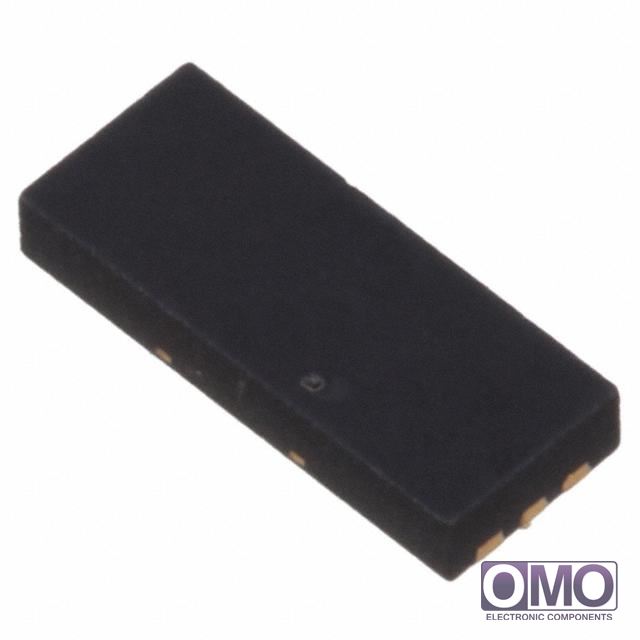

DMG5802LFX-7
- Manufacturer
Diodes Incorporated
- Description
- MOSFET 2N-CH 24V 6.5A 6DFN
- Category
- Discrete Semiconductor Products
- Family
- FETs - Arrays
- To learn about the specification of DMG5802LFX-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add DMG5802LFX-7 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of DMG5802LFX-7.
- We are offering DMG5802LFX-7 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of DMG5802LFX-7
| Packaging | Tape & Reel (TR) | |
| FET Type | 2 N-Channel (Dual) Common Drain | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 24V | |
| Current - Continuous Drain (Id) @ 25°C | 6.5A | |
| Rds On (Max) @ Id, Vgs | 15 mOhm @ 6.5A, 4.5V | |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 31.3nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1066.4pF @ 15V | |
| Power - Max | 980mW | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-VFDFN Exposed Pad | |
| Supplier Device Package | 6-DFN5020 (5x2) | |
| Other Names | DMG5802LFX-7DITR DMG5802LFX7 | |
| call me | [email protected] | |
