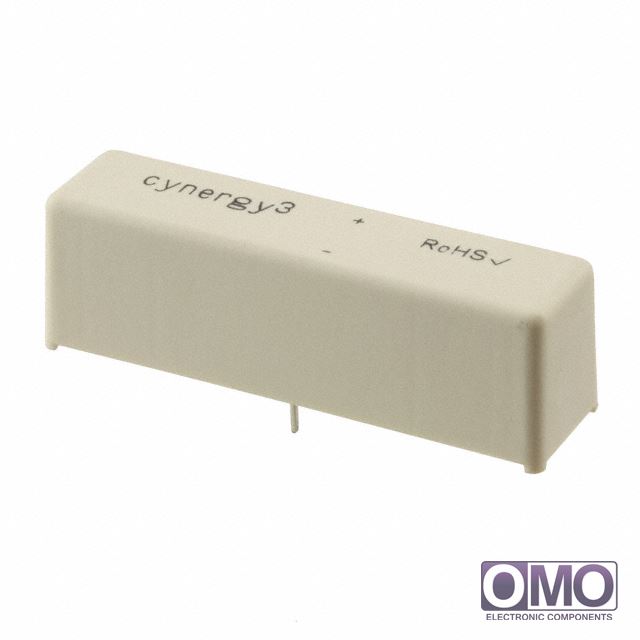

DBR71210

View larger image

Part Number

DBR71210

Manufacturer

Description
RELAY REED SPST 3A 12V
Category
Relays
Family
Power Relays, Over 2 Amps
  • To learn about the specification of DBR71210, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add DBR71210 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of DBR71210.
  • We are offering DBR71210 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of DBR71210
PackagingTray
Relay TypeReed
Coil TypeNon Latching
Coil Current50mA
Coil Voltage12VDC
Contact FormSPST-NC (1 Form B)
Contact Rating (Current)3A
Switching Voltage1000VAC, 1000VDC - Max
Turn On Voltage (Max)9 VDC
Turn Off Voltage (Min)1.25 VDC
Operate Time2ms
Release Time3ms
Features-
Mounting TypeThrough Hole
Termination StylePC Pin
Contact MaterialRhodium (Rh)
Coil Power-
Coil Resistance240 Ohms
Operating Temperature-20°C ~ 70°C
Other Names725-1049
DBR71210-ND
