- Part Number

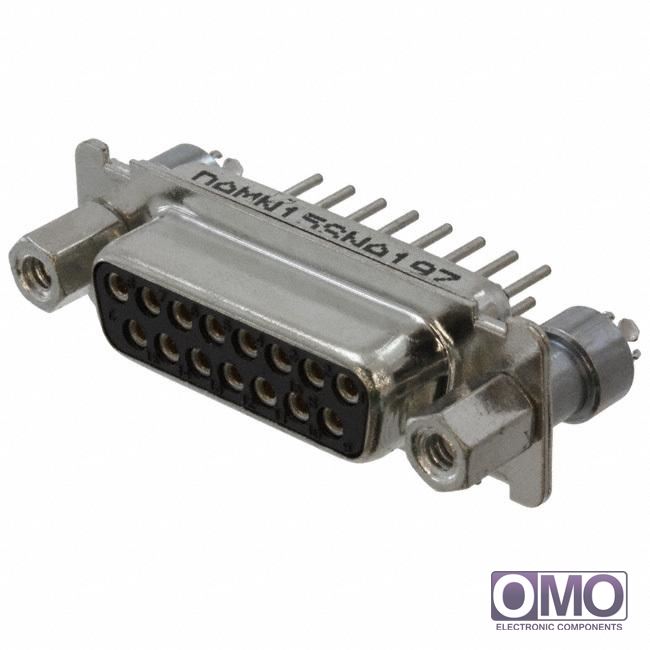

DAMN-15S-N-A197
- Manufacturer
ITT Cannon, LLC
- Description
- D-Sub Connector Receptacle, Female Sockets 15 Position Panel Mount, Through Hole Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of DAMN-15S-N-A197, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add DAMN-15S-N-A197 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of DAMN-15S-N-A197.
- We are offering DAMN-15S-N-A197 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Bulk | |
| Connector Style | D-Sub | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 15 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount, Through Hole | |
| Flange Feature | Mating Side; Female Screwlock (4-40) | |
| Termination | Solder | |
| Features | Board Lock, Shielded | |
| Shell Material, Finish | Steel, Tin-Lead Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 7.5A | |
| Housing Material | Polyester | |
| Color | Black | |
| Other Names | 053512-2313 1003-1843 535122313 DAMN-15S-N-A197-ND DAMN15SNA197 IDAMN15SNA197 IDAMN15SNA197-ND | |
