Part Number

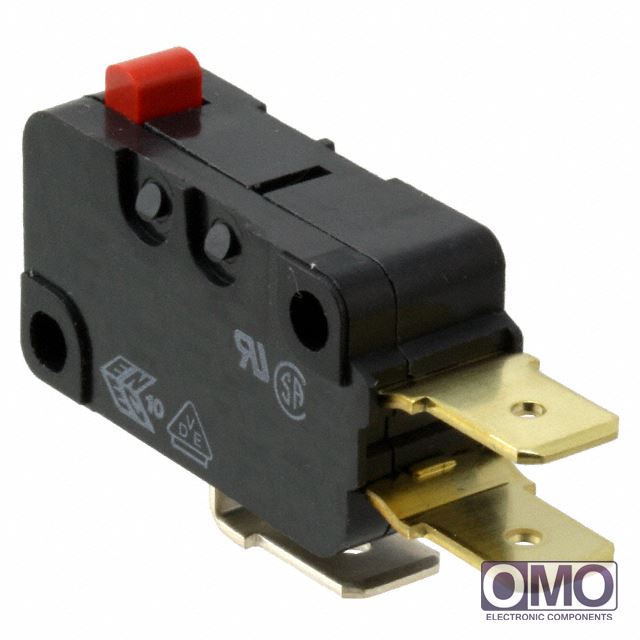

D3V-16-1C5

Manufacturer

Description
SWITCH SPDT 16A QC TERM 250V
Category
Switches
Family
Snap Action, Limit Switches

  • To learn about the specification of D3V-16-1C5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add D3V-16-1C5 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of D3V-16-1C5.
  • We are offering D3V-16-1C5 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of D3V-16-1C5
PackagingBulk
CircuitSPDT
Switch FunctionOn-Mom
Current Rating16A (AC), 10A (DC)
Voltage Rating - AC250V
Voltage Rating - DC30V
Actuator TypeRound (Pin Plunger)
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.250" (6.3mm)
Ingress ProtectionIP40
Features-
Operating Force, Torque200gf
Release Force50gf
Pretravel0.047" (1.2mm)
Differential Travel0.016" (0.4mm)
Overtravel0.040" (1.0mm)
Operating Position0.579" (14.7mm)
Mechanical Life10,000,000 Cycles
Electrical Life100,000 Cycles
Operating Temperature-25°C ~ 105°C
Other NamesD3V-16-1C5-ND
D3V161C5
SW1481
