- Part Number

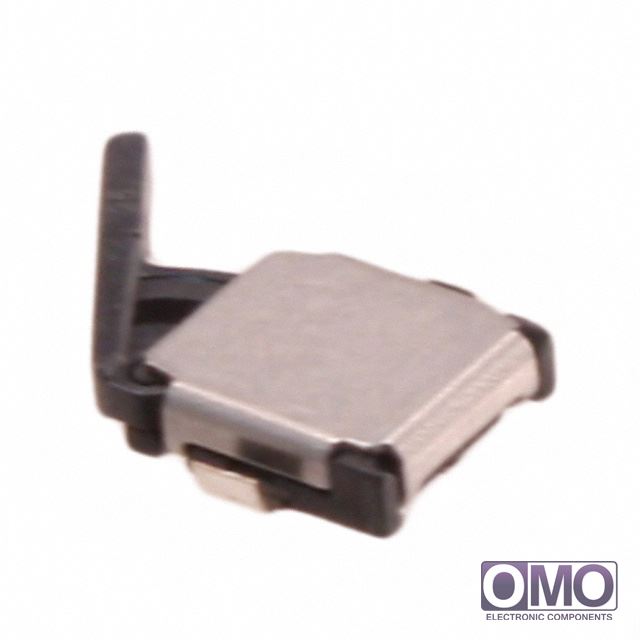

D3SH-A1R1
- Manufacturer
Omron
- Description
- SWITCH LVR SPST-NO RT W/BOSS 30V
- Category
- Switches
- Family
- Snap Action, Limit Switches
- To learn about the specification of D3SH-A1R1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add D3SH-A1R1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of D3SH-A1R1.
- We are offering D3SH-A1R1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of D3SH-A1R1
| Packaging | Tape & Reel (TR) | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 1mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Angled Toggle (Detector) | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | SMD (SMT) Tab | |
| Ingress Protection | - | |
| Features | Board Guide, Right Operating Lever | |
| Operating Force, Torque | 24gf | |
| Release Force | - | |
| Pretravel | - | |
| Differential Travel | - | |
| Overtravel | - | |
| Operating Position | 0.213" (5.4mm) | |
| Mechanical Life | 150,000 Cycles | |
| Electrical Life | 100,000 Cycles | |
| Operating Temperature | -25°C ~ 85°C | |
| Other Names | D3SHA1R1 SW1046TR | |
| call me | [email protected] | |
