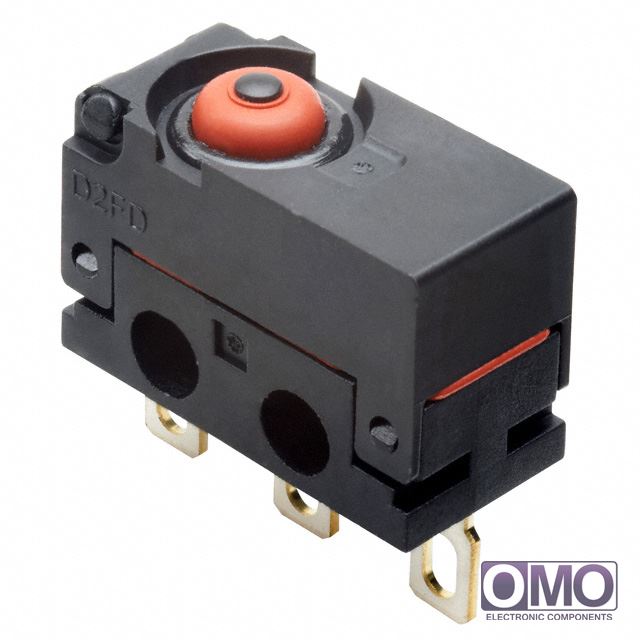

D2FD-01L0-1H

View larger image

Part Number

D2FD-01L0-1H

Manufacturer

Description
SWITCH PIN PLUNG SPDT 0.1A 125V
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of D2FD-01L0-1H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add D2FD-01L0-1H with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of D2FD-01L0-1H.
  • We are offering D2FD-01L0-1H for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of D2FD-01L0-1H
PackagingBulk
CircuitSPDT
Switch FunctionOn-Mom
Current Rating100mA (AC/DC)
Voltage Rating - AC125V
Voltage Rating - DC30V
Actuator TypeRound (Pin Plunger)
Mounting TypeChassis Mount
Termination StyleSolder Lug
Ingress Protection-
FeaturesDust Protected
Operating Force, Torque204gf
Release Force25gf
Pretravel0.024" (0.6mm)
Differential Travel0.005" (0.12mm)
Overtravel0.010" (0.25mm)
Operating Position0.276" (7.0mm)
Mechanical Life300,000 Cycles
Electrical Life100,000 Cycles
Operating Temperature-20°C ~ 70°C
Other NamesD2FD01L01H
SW1365
